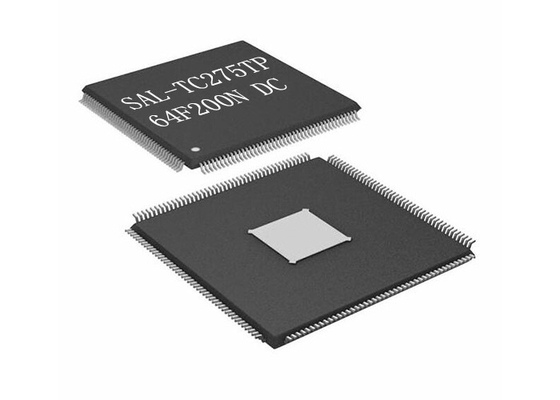

4MB Flash SAL-TC275TP-64F200N DC 32Bit TriCore Microcontrollers Chip LQFP176

4MB Flash SAL-TC275TP-64F200N DC 32Bit TriCore Microcontrollers Chip LQFP176​

Product Description Of SAL-TC275TP-64F200N DC

SAL-TC275TP-64F200N DC is 32Bit TriCore Microcontrollers Chip, Up to 384 Kbyte Data Flash Memory (DFLASH) usable for EEPROM emulation, 64-Channel DMA Controller with safe data transfer.

Specification Of SAL-TC275TP-64F200N DC

Feature Of SAL-TC275TP-64F200N DC

• One bus bridge (SFI Bridge)
• Optional Hardware Security Module (HSM) on some variants
• Safety Management Unit (SMU) handling safety monitor alarms
• Memory Test Unit with ECC, Memory Initialization and MBIST functions (MTU)
• Hardware I/O Monitor (IOM) for checking of digital I/O
• Four Queued SPI Interface Channels (QSPI) with master and slave capability up to 50 Mbit/s
• High Speed Serial Link (HSSL) for serial inter-processor communication up to 320 Mbit/s
• Two serial Micro Second Bus interfaces (MSC) for serial port expansion to external power devices
• One MultiCAN+ Module with 4 CAN nodes and 256 free assignable message objects for high efficiency data handling via FIFO buffering and gateway data transfer
• 10 Single Edge Nibble Transmission (SENT) channels for connection to sensors
• One FlexRayTM module with 2 channels (E-Ray) supporting V2.1

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
