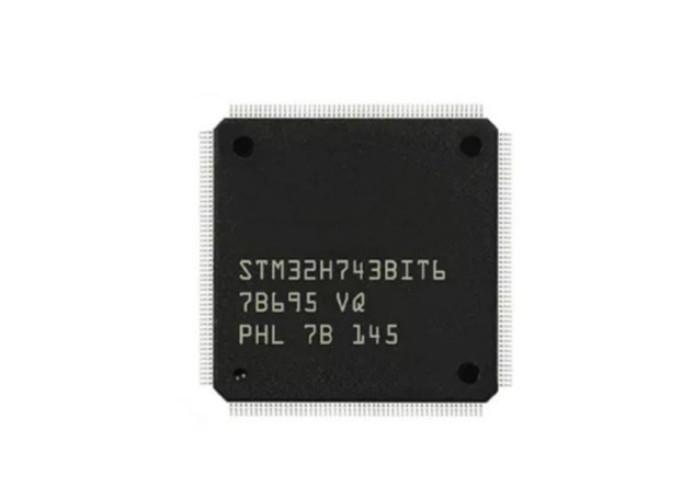

STM32H743BIT6 Microcontroller IC 32 Bit Single Core 480MHz STM32H7 MCU

STM32H7 MCU STM32H743BIT6 32-Bit Single-Core 480MHz Microcontroller IC

Product Description Of STM32H743BIT6

STM32H743BIT6 devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480 MHz. The Cortex® -M7 core features a floating point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types.

Specification Of STM32H743BIT6

Features Of STM32H743BIT6

• Up to 2 Mbytes of Flash memory with readwhile-write support
• Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), Up to 864 Kbytes of user SRAM, and 4 Kbytes of SRAM in Backup domain
• Dual mode Quad-SPI memory interface running up to 133 MHz
• Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND Flash memory clocked up to 100 MHz in Synchronous mode
• CRC calculation unit

Other Supply Product Types

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
