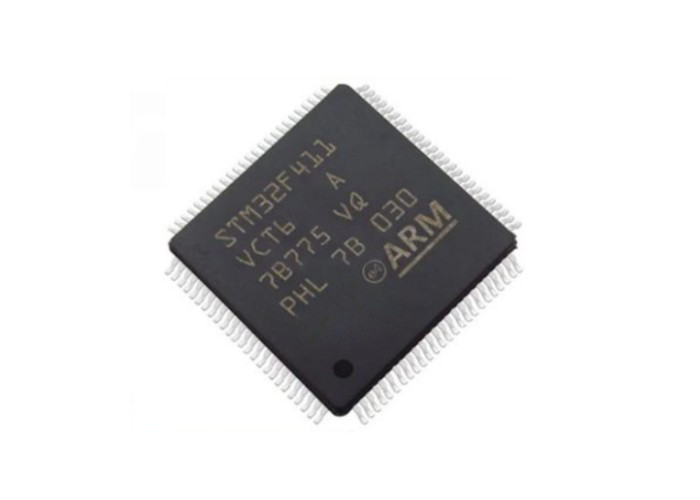

High-Performance STM32F411VCT6 256KB FLASH ARM Microcontrollers - MCU 100-LQFP

High-Performance STM32F411VCT6 256KB FLASH ARM Microcontrollers - MCU 100-LQFP

Product Description Of STM32F411VCT6

STM32F411VCT6 32-bit Cortex™-M4 Microcontrollers (MCUs) offer better performance, DSP capability, more SRAM, and peripheral improvements such as full-duplex I²S, less than 1μA RTC, and 2.4MSPS ADCs.

Specification Of STM32F411VCT6

Features Of STM32F411VCT6

• Up to 81 I/O ports with interrupt capability
• Up to 78 fast I/Os up to 100 MHz
• Up to 77 5 V-tolerant I/Os
• Up to 13 communication interfaces
• Up to 3 x I2C interfaces (SMBus/PMBus)
• Up to 3 USARTs (2 x 12.5 Mbit/s, 1 x 6.25 Mbit/s), ISO 7816 interface, LIN,
• IrDA, modem control)
• Up to 5 SPI/I2Ss (up to 50 Mbit/s, SPI or I2S audio protocol), SPI2 and SPI3 with muxed full-duplex I2S to achieve audio
• class accuracy via internal audio PLL or external clock
• SDIO interface (SD/MMC/eMMC)
• Advanced connectivity: USB 2.0 full-speed device/host/OTG controller with on-chip PHY

Applications Of STM32F411VCT6

• Motor drive and application control
• Medical equipment
• Industrial applications: PLC, inverters, circuit breakers
