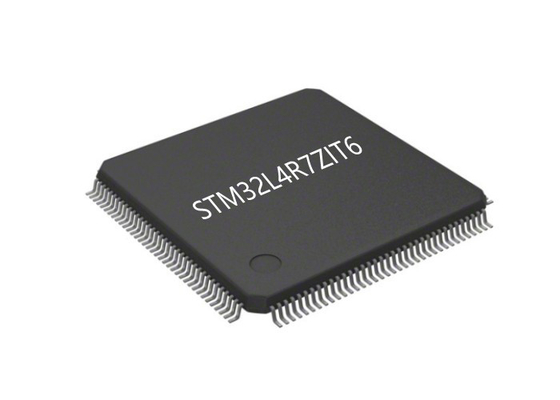

2MB Flash STM32L4R7ZIT6 ARM Microcontrollers - MCU Ultra Low Power FPU Arm Cortex-M4 MCU

2MB Flash STM32L4R7ZIT6 ARM Microcontrollers - MCU Ultra Low Power FPU Arm Cortex-M4 MCU

Product Description Of STM32L4R7ZIT6

STM32L4R7ZIT6 devices operate in the -40 to +85 °C (+105 °C junction) and -40 to +125 °C (+130 °C junction) temperature ranges from a 1.71 to 3.6 V for VDD power supply when using internal LDO regulator and a 1.05 to 1.32 V VDD12 power supply when using external SMPS supply. A comprehensive set of power-saving modes allows the design of low-power applications.

Specification Of STM32L4R7ZIT6

Features Of STM32L4R7ZIT6

• 12-bit native resolution, with built-in calibration
• 5.33 Msps maximum conversion rate with full resolution
• Down to 18.75 ns sampling time
• Increased conversion rate for lower resolution (up to 8.88 Msps for 6-bit resolution)
• Up to 16 external channels
• 5 internal channels: internal reference voltage, temperature sensor, VBAT/3, DAC1 and DAC2 outputs
• One external reference pin is available on some package, allowing the input voltage range to be independent from the power supply
• Single-ended and differential mode inputs
• Low-power design
• Capable of low-current operation at low conversion rate (consumption decreases linearly with speed)
• Dual clock domain architecture: ADC speed independent from CPU frequency
• Highly versatile digital interface
