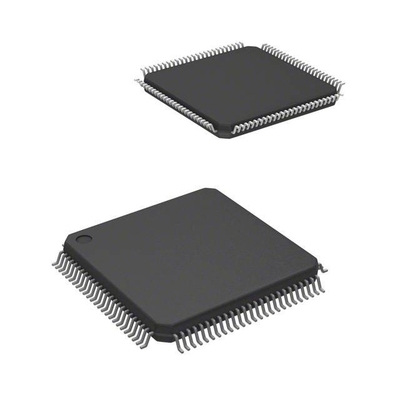

MKV31F512VLL12 Microcontroller IC 32-Bit Single Core 120MHz 512KB Embedded

MKV31F512VLL12 32-Bit Single-Core 120MHz 512KB Embedded Microcontrollers IC

Product Description Of MKV31F512VLL12

MKV31F512VLL12 MCU is a highly scalable member of the KinetisV series and provides a high-performance, cost-competitivemotor control solution.

Specification Of MKV31F512VLL12

Features Of MKV31F512VLL12

• Dual 16-bit ADCs sampling at up to 1.2 MS/s in 12-bitmode

• 20 channels of highly flexible motor control timers across 4 independent time bases

• Large RAM block enabling local execution of fast control loops at full clock speed

• 120 MHz ARM Cortex-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz

• 512 KB of embedded flash and 96 KB of RAM

• FlexBus external bus interface

• Preprogrammed Kinetis flashloader for one-time, insystem factory programming

• Two 8-ch motor-control/general purpose/PWM timers

• Two 2-ch motor-control/general purpose timers with quadrature decoder functionality

• Hardware CRC module

• 128-bit unique identification (ID) number per chip

• Hardware random-number generator

• Flash access control to protect proprietary software

• Voltage range (including flash writes): 1.71 to 3.6 V

• Temperature range (ambient): -40 to 105°C

• Two 16-bit SAR ADCs (1.2 MS/s in 12bit mode)

• Two 12-bit DACs

• Two analog comparators (CMP) with 6-bit DAC

• Accurate internal voltage reference

• 16-channel DMA controller

• Independent external and software watchdog monitor
