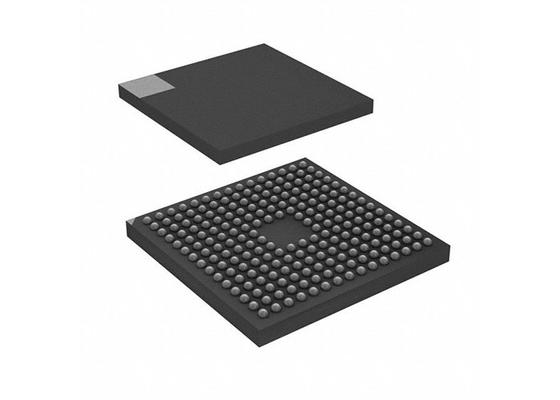

Microcontroller MCU STM32F469NEH6 32-Bit Single-Core 180MHz 512KB Flash

Microcontroller MCU STM32F469NEH6 32-Bit Single-Core 180MHz 512KB Flash

Product Description Of STM32F469NEH6

STM32F469NEH6 devices is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision which supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

Specification Of STM32F469NEH6

Feature Of STM32F469NEH6

• 512 bytes of OTP memory

• Up to 2 MB of flash memory organized into two banks allowing read-while-write

• Up to 384+4 KB of SRAM including 64 KB of CCM (core coupled memory) data RAM

• LCD parallel interface, 8080/6800 modes

• LCD TFT controller supporting up to XGA resolution

• MIPI® DSI host controller supporting up to 720p 30 Hz resolution

• 1.7 V to 3.6 V application supply and I/Os

• POR, PDR, PVD, and BOR

• 4-to-26 MHz crystal oscillator

• Internal 16 MHz factory-trimmed RC (1% accuracy)

• 32 kHz oscillator for RTC with calibration

• Internal 32 kHz RC with calibration

• Up to 157 fast I/Os up to 90 MHz

• Up to 159 5 V-tolerant I/Os

• Up to 21 communication interfaces

• Up to three I2C interfaces (SMBus/PMBus)

• Up to four USARTs and four UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)

• Up to six SPIs (45 Mbits/s), two with muxed full-duplex I2S for audio class accuracy via internal audio PLL or external clock

• USB 2.0 full-speed device/host/OTG controller with on-chip PHY

• USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI

• Dedicated USB power rail enabling on-chip PHYs operation throughout the entire MCU power supply range

• 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII

• 8- to 14-bit parallel camera interface up to 54 Mbytes/s.

• True random number generator

• CRC calculation unit

• RTC: subsecond accuracy, hardware calendar

• 96-bit unique ID
