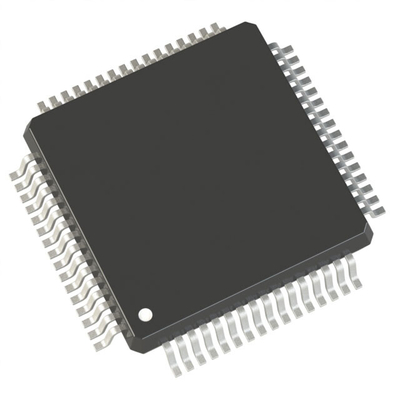

STM32F072R8T7 32-Bit Single-Core 48MHz 64KB Embedded Microcontroller IC

STM32F072R8T7 32-Bit Single-Core 48MHz 64KB Embedded Microcontroller IC

Product Description Of STM32F072R8T7

STM32F072R8T7 microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 128 Kbytes of Flash memory and 16 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os.

Specification Of STM32F072R8T7

Feature Of STM32F072R8T7

• Core: ARM®32-bit Cortex®-M0 CPU, frequency up to 48 MHz

• 64 to 128 Kbytes of Flash memory

• 16 Kbytes of SRAM with HW parity

• CRC calculation unit

• Reset and power management

• Digital and I/O supply: VDD= 2.0 V to 3.6 V

• Analog supply: VDDA= VDDto 3.6 V

• Selected I/Os: VDDIO2= 1.65 V to 3.6 V

• Power-on/Power down reset (POR/PDR)

• Programmable voltage detector (PVD)

• Low power modes: Sleep, Stop, Standby

• VBATsupply for RTC and backup registers

• 4 to 32 MHz crystal oscillator

• 32 kHz oscillator for RTC with calibration

• Internal 8 MHz RC with x6 PLL option

• Internal 40 kHz RC oscillator

• Internal 48 MHz oscillator with automatic trimming based on ext. synchronization

• Up to 87 fast I/Os

• All mappable on external interrupt vectors

• Up to 68 I/Os with 5V tolerant capability and 19 with independent supply VDDIO2

• Seven-channel DMA controller

• One 12-bit, 1.0 μs ADC (up to 16 channels)

• Conversion range: 0 to 3.6 V

• Separate analog supply: 2.4 V to 3.6 V
