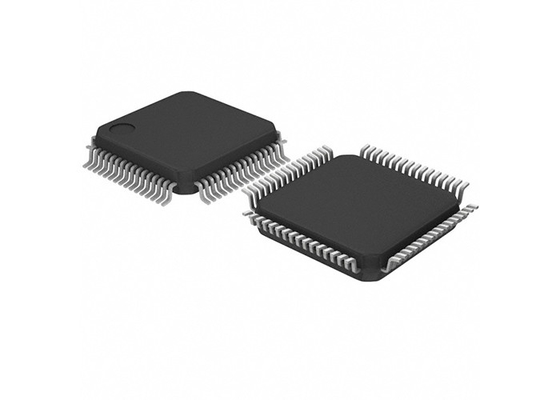

CY9AF114LPMC-GE1 32 Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller

CY9AF114LPMC-GE1 32-Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller

Product Description Of CY9AF114LPMC-GE1

CY9AF114LPMC-GE1 is highly integrated 32-bit microcontrollers that target for high-performance and cost-sensitive embedded control applications.
CY9AF114LPMC-GE1 is based on the Arm® Cortex®-M3 Processor and on-chip Flash memory and SRAM, and peripheral functions,including Motor Control Timers, ADCs, Communication Interfaces (UART, CSIO, I2C, LIN).

Specification Of CY9AF114LPMC-GE1

Feature Of CY9AF114LPMC-GE1

• Supports SRAM, NOR Flash device

• Up to 8 chip selects

• 8-/16-bit Data width

• Up to 25-bit Address bit

• Maximum area size: Up to 256 Mbytes

• Supports Address/Data multiplex

• 8 independently configured and operated channels

• Transfer address area: 32bit (4 Gbytes)

• Transfer mode: Block transfer/Burst transfer/Demand transfer

• Transfer data type: byte/half-word/word

• Transfer block count: 1 to 16

• Number of transfers: 1 to 65536

• Successive Approximation type

• Built-in 3units

• Conversion time: 1.0 μs@5 V

• Priority conversion available (priority at 2levels)

• Scanning conversion mode

• 16-bit free-run timer × 3 ch/unit

• Input capture × 4 ch/unit

• Output compare × 6 ch/unit

• A/D activation compare × 3 ch/unit

• Waveform generator × 3 ch/unit

• 16-bit PPG timer × 3 ch/unit

• PWM signal output function

• DC chopper waveform output function

• Dead timer function

• Input capture function

• A/D converter activate function

• DTIF (Motor emergency stop) interrupt function

• Reset requests from INITX pin

• Power-on reset

• Software reset

• Watchdog timers reset

• Low-voltage detector reset

• Clock Supervisor reset
