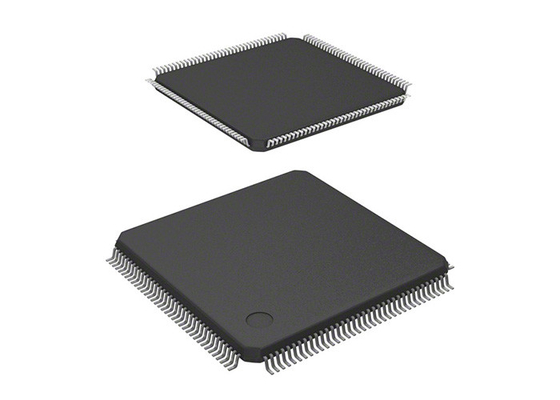

Microcontroller MCU STM32F303ZDT6 32-Bit Single-Core 72MHz Microcontroller IC 144-LQFP

Microcontroller MCU STM32F303ZDT6 32-Bit Single-Core 72MHz Microcontroller IC 144-LQFP

Product Description Of STM32F303ZDT6

STM32F303ZDT6 is based on the high-performance ARM®Cortex®-M4 32-bit RISC core with FPU operating at a frequency of 72 MHz, and embedding a floating point unit (FPU), a memory protection unit (MPU) and an embedded trace macrocell (ETM).

Specification Of STM32F303ZDT6

Features Of STM32F303ZDT6

• Core: ARM®Cortex®-M4 32-bit CPU with 72 MHz FPU, single-cycle multiplication and HW division, 90 DMIPS (from CCM), DSP instruction and MPU (memory protection unit)

• Operating conditions:

• VDD, VDDAvoltage range: 2.0 V to 3.6 V

• Up to 512 Kbytes of Flash memory

• 64 Kbytes of SRAM, with HW parity check implemented on the first 32 Kbytes.

• Routine booster: 16 Kbytes of SRAM on instruction and data bus, with HW parity check (CCM)

• Flexible memory controller (FSMC) for static memories, with four Chip Select

• CRC calculation unit

• Reset and supply management

• Power-on/Power-down reset (POR/PDR)

• Programmable voltage detector (PVD)

• Low-power modes: Sleep, Stop and Standby

• VBATsupply for RTC and backup registers

• 4 to 32 MHz crystal oscillator

• 32 kHz oscillator for RTC with calibration

• Internal 8 MHz RC with x 16 PLL option

• Internal 40 kHz oscillator

• Up to 115 fast I/Os

• All mappable on external interrupt vectors

• 12-channel DMA controller

• Four ADCs 0.20 μs (up to 40 channels) with selectable resolution of 12/10/8/6 bits, 0 to 3.6 V conversion range, separate analog supply from 2.0 to 3.6 V
