Product Details:
|
Part Number: | ADXL345BCCZ | Sensor Type:: | 3-axis |
---|---|---|---|
Sensing Axis: | X, Y, Z | Acceleration: | 2 G, 4 G, 8 G, 16 G |
Sensitivity: | 3.9 Mg/LSB | Output Type: | Digital |
Highlight: | ADXL345BCCZ,ADXL345BCCZ Sensor IC,Three-Axis Digital Accelerometer |

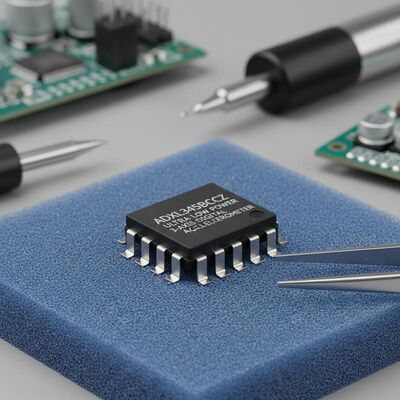

ADXL345BCCZ Sensor IC Ultra Low Power Three-Axis Digital Accelerometer LGA-14 Package
Product Description Of ADXL345BCCZ
ADXL345BCCZ is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.
ADXL345BCCZ is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.
Specification Of ADXL345BCCZ
|
3-axis |
|
X, Y, Z |
|
2 g, 4 g, 8 g, 16 g |
|
3.9 mg/LSB |
|
Digital |
|
I2C, SPI |
|
13 bit |
|
3.6 V |
|
2 V |
|
140 uA |
|
- 55 C |
|
+ 105 C |
|
LGA-14 |
Height: |
3 mm |
Length: |
5 mm |
Moisture Sensitive: |
Yes |
Operating Supply Voltage: |
2.5 V |
Width: |
1 mm |
Unit Weight: |
30.500 mg |
Features Of ADXL345BCCZ
Ultralow power: as low as 23 μA in measurement mode and 0.1 μA in standby mode at VS = 2.5 V (typical)
Power consumption scales automatically with bandwidth
User-selectable resolution
Fixed 10-bit resolution
Full resolution, where resolution increases with g range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all g ranges)
Embedded memory management system with FIFO technology minimizes host processor load
Single tap/double tap detection
Activity/inactivity monitoring
Free-fall detection
Supply voltage range: 2.0 V to 3.6 V
I/O voltage range: 1.7 V to VS
SPI (3- and 4-wire) and I2C digital interfaces
Flexible interrupt modes mappable to either interrupt pin
Measurement ranges selectable via serial command
Bandwidth selectable via serial command
Wide temperature range (−40°C to +85°C)
10,000 g shock survival
Pb free/RoHS compliant
Small and thin: 3 mm × 5 mm × 1 mm LGA package
Applications Of ADXL345BCCZ
Handsets
Medical instrumentation
Gaming and pointing devices
Industrial instrumentation
Personal navigation devices
Hard disk drive (HDD) protection
