STM32L151VCT6 Microcontroller MCU 32MHz 32-Bit Single-Core Microcontroller IC LQFP-100

STM32L151VCT6 Microcontroller MCU 32MHz 32-Bit Single-Core Microcontroller IC LQFP-100
STM32L151VCT6 Microcontroller MCU 32MHz 32-Bit Single-Core Microcontroller IC LQFP-100

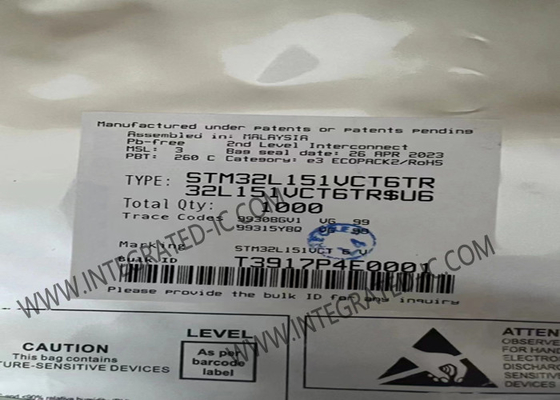

Large Image :  STM32L151VCT6 Microcontroller MCU 32MHz 32-Bit Single-Core Microcontroller IC LQFP-100

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STM32L151VCT6
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-100
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

STM32L151VCT6 Microcontroller MCU 32MHz 32-Bit Single-Core Microcontroller IC LQFP-100

Description
Part Number: STM32L151VCT6 Core: ARM Cortex M3
Program Memory Size: 256 KB Maximum Clock Frequency: 32 MHz
Number Of I/Os: 83 I/O Data RAM Size: 32 KB

STM32L151VCT6 Microcontroller MCU 32MHz 32-Bit Single-Core Microcontroller IC LQFP-100​



Product Description Of STM32L151VCT6

STM32L151VCT6 is 32MHz, ARM® Cortex®-M3 32-Bit Single-Core Microcontroller IC, it incorporate the connectivity power of the universal serial bus (USB) with the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a frequency of 32 MHz (33.3 DMIPS), a memory protection unit (MPU), high-speed embedded memories (Flash memory up to 256 Kbytes and RAM up to 32 Kbytes) and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

STM32L151VCT6 offer two operational amplifiers, one 12-bit ADC, two DACs, two ultra-low-power comparators, one general-purpose 32-bit timer, six general-purpose 16-bit timers and two basic timers, which can be used as time bases


Specification Of STM32L151VCT6

Core Processor
ARM® Cortex®-M3
Core Size
32-Bit Single-Core
Speed
32MHz
Connectivity
I2C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals
Brown-out Detect/Reset, Cap Sense, DMA, I2S, POR, PWM, WDT
Number of I/O
83
Program Memory Size
256KB (256K x 8)
Program Memory Type
FLASH
EEPROM Size
8K x 8
RAM Size
32K x 8
Voltage - Supply (Vcc/Vdd)
1.8V ~ 3.6V
Data Converters
A/D 25x12b; D/A 2x12b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
100-LQFP (14x14)
Package / Case
100-LQFP


Features Of STM32L151VCT6

• Ultra-low-power platform
– 1.65 V to 3.6 V power supply
– -40 °C to 105 °C temperature range
– 0.29µA Standby mode (3 wakeup pins)
– 1.15 µA Standby mode + RTC
– 0.44 µA Stop mode (16 wakeup lines)
– 1.4 µA Stop mode + RTC
– 8.6 µA Low-power run mode
– 185 µA/MHz Run mode
– 10 nA ultra-low I/O leakage
– 8 µs wakeup time
• Core: ARM® Cortex®-M3 32-bit CPU
– From 32 kHz up to 32 MHz max
– 1.25 DMIPS/MHz (Dhrystone 2.1)
– Memory protection unit
• Reset and supply management
– Low-power, ultrasafe BOR (brownout reset) with 5 selectable thresholds
– Ultra-low-power POR/PDR
– Programmable voltage detector (PVD)
• Clock sources
– 1 to 24 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– High Speed Internal 16 MHz factory-trimmed RC (+/- 1%)
– Internal Low-power 37 kHz RC
– Internal multispeed low-power 65 kHz to 4.2 MHz PLL for CPU clock and USB (48 MHz)
• Up to 83 fast I/Os (70 I/Os 5V tolerant), all mappable on 16 external interrupt vectors
• Memories
– 256 Kbytes of Flash memory with ECC
– 32 Kbytes of RAM
– 8 Kbytes of true EEPROM with ECC
– 128-byte backup register
• DMA controller 12x channels
• 9x peripheral communication interfaces
– 1x USB 2.0 (internal 48 MHz PLL)
– 3x USARTs
– Up to 8x SPIs (2x I2S, 3x 16 Mbit/s)
– 2x I2Cs (SMBus/PMBus)
• 11x timers: 1x 32-bit, 6x 16-bit with up to 4 IC/OC/PWM channels, 2x 16-bit basic timers, 2x watchdog timers (independent and window)
• Up to 23 capacitive sensing channels
• CRC calculation unit, 96-bit unique ID
