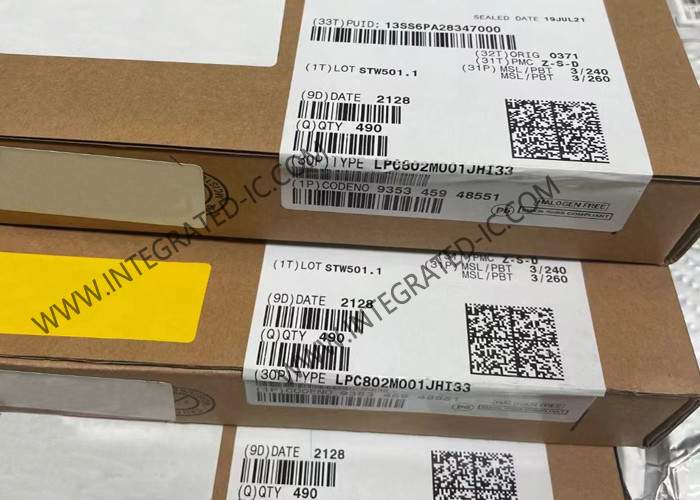

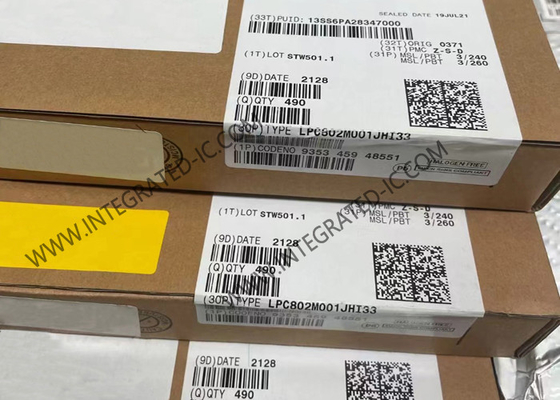

LPC802M001JHI33 Microcontroller MCU 15MHz 32-Bit Single-Core Microcontroller IC

LPC802M001JHI33 Microcontroller MCU 15MHz 32-Bit Single-Core Microcontroller IC​

Product Description Of LPC802M001JHI33

LPC802M001JHI33 is a cost-effective Arm Cortex-M0+ based 32-bit MCU family operating at CPU frequencies of up to 15 MHz. The LPC80x MCU family supports up to 32 KB of flash memory and up to 4 KB of SRAM.

LPC802M001JHI33 features a power-optimized core, small footprint in popular packages, and level shifting options thanks to its separate power rails. The peripheral complement of the LPC80x includes a CRC engine, I²C-bus interfaces, up to two USARTs, one SPI interface, capacitive touch interface (cap touch), one multi-rate timer, self-wake-up timer, one general purpose 32-bit counter/timer, one 12-bit ADC, one 10-bit DAC, one analog comparator, function-configurable I/O ports through a switch matrix, an input pattern match engine, programmable logic unit (PLU), and up to 30 general-purpose I/O pins.

Specification Of LPC802M001JHI33

Features Of LPC802M001JHI33

Arm Cortex-M0+ processor (revision r0p1), running at frequencies of up to 15 MHz with single-cycle multiplier and fast single-cycle I/O port
Arm Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
System tick timer
AHB multilayer matrix
Serial Wire Debug (SWD) with four break points and two watchpoints. JTAG boundary scan (BSDL) supported
Up to 32 KB on-chip flash programming memory
Code Read Protection (CRP)
Up to 4 KB SRAM
1 MHz low power oscillator can be used as a clock source
Clock output function with divider that can reflect all internal clock sources
Unique device serial number for identification
Single or dual power supplies (1.71 V to 3.6 V)
Operating temperature range -40 °C to +105 °C
Available in TSSOP16, TSSOP20, TSSOP24 and HVQFN33 packages
Supported by MCUXpresso SDK, IDE and Config Tools
