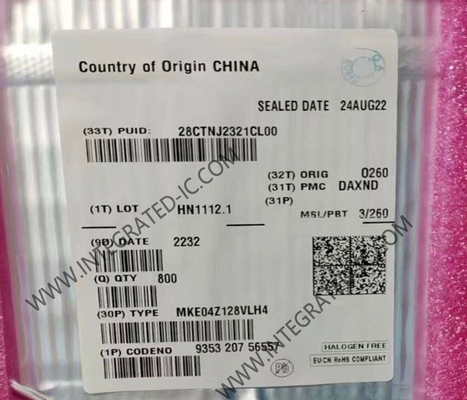

MKE04Z128VLH4 Microcontroller MCU 48MHz Kinetis KE04 Mainstream ARM Cortex-M0 MCU LQFP-64

MKE04Z128VLH4 Microcontroller MCU 48MHz Kinetis KE04 Mainstream ARM Cortex-M0 MCU LQFP-64

Product Description Of MKE04Z128VLH4
MKE04Z128VLH4 MCU delivers a next-generation solution with enhanced ESD/EMC performance for cost-sensitive, high-reliability device applications used in high electrical noise environments.

Specification Of MKE04Z128VLH4

Features Of MKE04Z128VLH4
Operating characteristics
Voltage range: 2.7 to 5.5 V
Flash write voltage range: 2.7 to 5.5 V
Temperature range (ambient): -40 to 105°C
Performance
Up to 48 MHz Arm® Cortex®-M0+ core
Single cycle 32-bit x 32-bit multiplier
Single cycle I/O access port
Memories and memory interfaces
Up to 128 KB flash
Up to 256 B EEPROM
Up to 4 KB RAM
Clocks
Oscillator (OSC) - loop-controlled Pierce oscillator, crystal or ceramic resonator range of 31.25 kHz to 39.0625 kHz or 4 MHz to 20 MHz
Internal clock source (ICS) - internal FLL with internal or external reference, precision trimming of internal reference allowing 1% deviation across temperature range of 0 °C to 70 °C and 1.5% deviation across temperature range of -40 °C to 105 °C, up to 20 MHz
Internal 1 kHz low-power oscillator (LPO)
System peripherals
Power management module (PMC) with three power modes: run, wait, stop
Low-voltage detection (LVD) with reset or interrupt, selectable trip points
Watchdog with independent clock source (WDOG)
Programmable cyclic redundancy check module (CRC)
Serial wire debug interface (SWD)
Bit manipulation engine (BME)
Security and integrity modules
64-bit unique identification (ID) number per chip
Human-machine interface
Up to 57 general-purpose input/output (GPIO)
Two 8-bit keyboard interrupt modules (KBI)
Analog modules
One 16-channel 12-bit SAR ADC with internal band gap reference channel, operation in Stop mode, optional hardware trigger (ADC)
Two analog comparators containing a 6-bit DAC and programmable reference input (ACMP)
Timers
One 6-channel FlexTimer/PWM (FTM)
Two 2-channel FlexTimer/PWM (FTM)
One 2-channel periodic interrupt timer (PIT)
One real-time clock (RTC)
One pulse-width timer (PWT)
One fast timer

Applications Of MKE04Z128VLH4
Automotive
Heating Ventilation and Air Conditioning (HVAC)
Motorcycle Engine Control Unit (ECU) and Small Engine Control
Consumer
Air Conditioning (AC)
Hearables
Major Home Appliances
Robotic Appliance
Small and Medium Appliances
Wristband
Industrial
3-Phase AC Induction Motor
Automatic Vehicle Identification
Automotive Gas Meter
Brushless DC Motor (BLDC) Control
Building Safety Detectors
Electricity Meter
Heat Meter
Motion Control and Robotics
Motor Drives
Permanent Magnet Synchronous Motor (PMSM)
Power Grid Converter
Smart Lighting
Smart Power Socket and Light Switch
Smart Watch and Wristband
Surround View
Transport Ticketing
Water Meter
