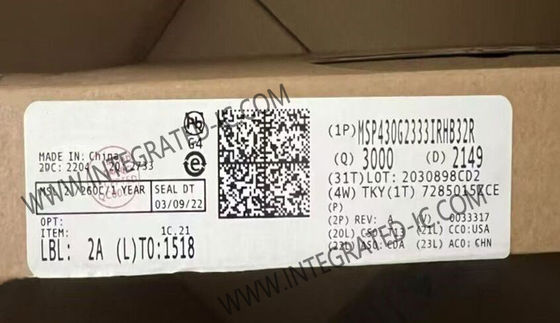

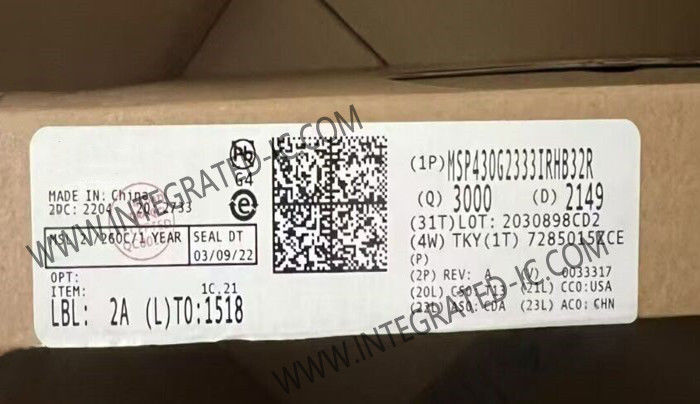

MSP430G2333IRHB32R Microcontroller MCU 16-Bit Microcontroller IC 16MHz Mixed-Signal MCU

MSP430G2333IRHB32R Microcontroller MCU 16-Bit Microcontroller IC 16MHz Mixed-Signal MCU​

Product Description Of MSP430G2333IRHB32R

MSP430G2333IRHB32R is ultra-low-power mixed-signal microcontrollers with built-in 16-bit timers, up to 24 I/O capacitive-touch enabled pins, and built-in communication capability using the USCI.

MSP430G2333IRHB32R features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 1 µs.

Specification Of MSP430G2333IRHB32R

Features Of MSP430G2333IRHB32R

• Low Supply-Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption
– Active Mode: 230 µA at 1 MHz, 2.2 V
– Standby Mode: 0.5 µA
– Off Mode (RAM Retention): 0.1 µA
• Five Power-Saving Modes
• Ultra-Fast Wake up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• Basic Clock Module Configurations
– Internal Frequencies up to 16 MHz With Four Calibrated Frequencies
– Internal Very-Low-Power Low-Frequency (LF) Oscillator
– 32-kHz Crystal
– External Digital Clock Source
• Two 16-Bit Timer_A With Three Capture/Compare Registers
• Up to 24 Capacitive-Touch Enabled I/O Pins

• Universal Serial Communication Interface (USCI)
– Enhanced UART Supports Automatic BaudRate Detection (LIN)
– IrDA Encoder and Decoder
– Synchronous SPI
– I2C
• 10-Bit 200-ksps Analog-to-Digital Converter (ADC) With Internal Reference, Sample-and-Hold, and Autoscan

Applications Of MSP430G2333IRHB32R
• Power Management
• Sensor Interface
• Capacitive Touch
