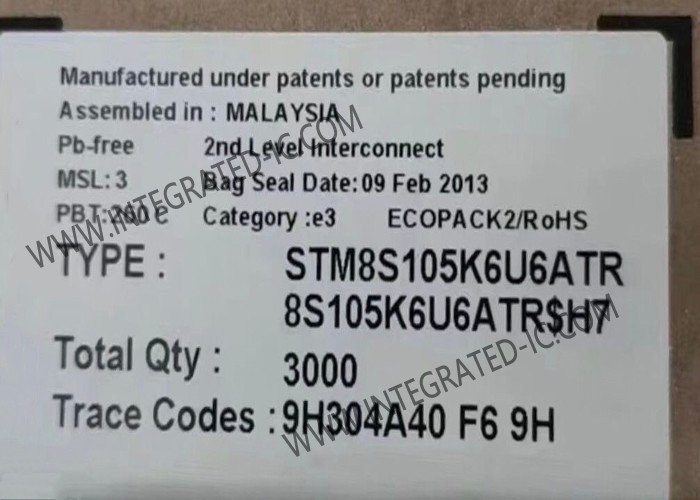

STM8S105K6U6ATR Microcontroller MCU 16MHz Mainstream Access Line 8-Bit MCU UFQFN-32

STM8S105K6U6ATR Microcontroller MCU 16MHz Mainstream Access Line 8-Bit MCU UFQFN-32​

Product Description Of STM8S105K6U6ATR

STM8S105K6U6ATR access line 8-bit microcontrollers offer from 16 to 32 Kbyte Flash program memory, plus integrated true data EEPROM.
STM8S105K6U6ATR access line provide the following benefits: reduced system cost, performance and robustness, short development cycles, and product longevity.

STM8S105K6U6ATR performance is ensured by a 16 MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source), and a clock security system.

Specification Of STM8S105K6U6ATR

Features Of STM8S105K6U6ATR

Core
- 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
- Extended instruction set
Memories
- Program memory: up to 32 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle
- Data memory: up to 1 Kbyte true data EEPROM; endurance 300 kcycle
- RAM: up to 2 Kbyte
Clock, reset and supply management
- 2.95 to 5.5 V operating voltage
- Flexible clock control, 4 master clock sources
– Low power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
- Clock security system with clock monitor
- Power management:
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
- Permanently active, low-consumption poweron and power-down reset
Timers
- Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
- 2x16-bit general purpose timer, with 2+3
CAPCOM channels (IC, OC or PWM)
- 8-bit basic timer with 8-bit prescaler
- Auto wake-up timer
- Window watchdog and independent watchdog timers
Communication Interfaces
- UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
- SPI interface up to 8 Mbit/s
- I2C interface up to 400 kbit/s
