STM8S103F3U6TR Microcontroller MCU 8-Bit Microcontroller IC 16MHz Embedded MCU

STM8S103F3U6TR Microcontroller MCU 8-Bit Microcontroller IC 16MHz Embedded MCU
STM8S103F3U6TR Microcontroller MCU 8-Bit Microcontroller IC 16MHz Embedded MCU
STM8S103F3U6TR Microcontroller MCU 8-Bit Microcontroller IC 16MHz Embedded MCU STM8S103F3U6TR Microcontroller MCU 8-Bit Microcontroller IC 16MHz Embedded MCU

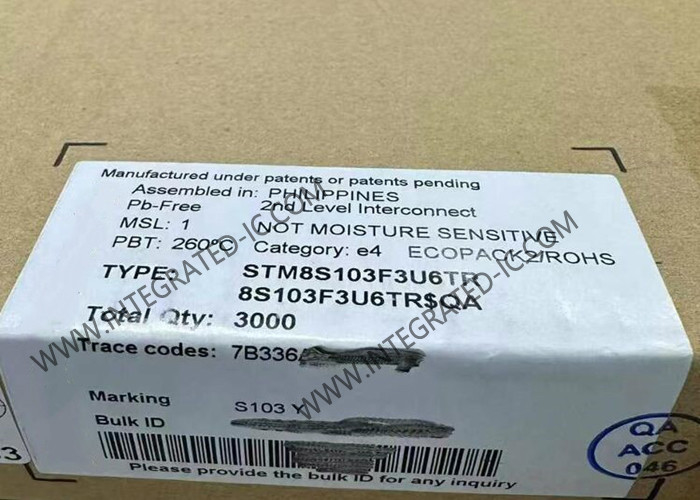

Large Image :  STM8S103F3U6TR Microcontroller MCU 8-Bit Microcontroller IC 16MHz Embedded MCU

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STM8S103F3U6TR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: UFQFN-20
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

STM8S103F3U6TR Microcontroller MCU 8-Bit Microcontroller IC 16MHz Embedded MCU

Description
Part Number: STM8S103F3U6TR Program Memory Size: 8 KB
Data RAM Size: 1 KB Number Of I/Os: 16 I/O
ADC Resolution: 10 Bit Interface Type: I2C, SPI, UART

STM8S103F3U6TR Microcontroller MCU 8-Bit Microcontroller IC 16MHz Embedded MCU



Product Description Of STM8S103F3U6TR

STM8S103F3U6TR is Mainstream Access line 8-bit MCU with 8 Kbytes Flash, 16 MHz CPU, integrated EEPROM.

STM8S103F3U6TR access line 8-bit microcontrollers offer 8 Kbyte Flash program memory, plus integrated true data EEPROM. It provide the following benefits: performance, robustness, and reduced system cost.


Specification Of STM8S103F3U6TR

Core Processor
STM8
Core Size
8-Bit
Speed
16MHz
Connectivity
I2C, IrDA, LINbus, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O
16
Program Memory Size
8KB (8K x 8)
Program Memory Type
FLASH
EEPROM Size
640 x 8
RAM Size
1K x 8
Voltage - Supply (Vcc/Vdd)
2.95V ~ 5.5V
Data Converters
A/D 5x10b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
20-UFQFN


Features Of STM8S103F3U6TR

Core
• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
• Extended instruction set
Memories
• Program memory: 8 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle
• Data memory: 640 byte true data EEPROM; endurance 300 kcycle
• RAM: 1 Kbyte
Communication interfaces
• UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
• SPI interface up to 8 Mbit/s
• I2C interface up to 400 kbit/s
Analog to digital converter (ADC)
• 10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog I/Os
• Up to 28 I/Os on a 32-pin package including 21 high sink outputs
• Highly robust I/O design, immune against current injection
