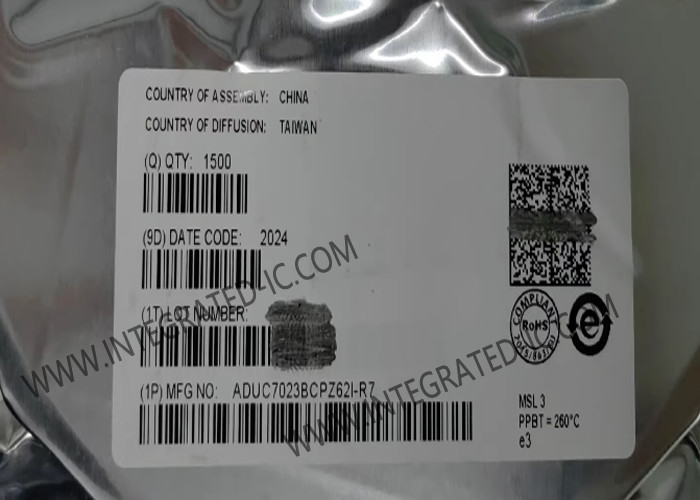

ADUC7023BCPZ62I Microcontroller MCU Precision Analog Microcontroller With Enhanced IRQ Handler

ADUC7023BCPZ62I Microcontroller MCU Precision Analog Microcontroller With Enhanced IRQ Handler

Product Description Of ADUC7023BCPZ62I
ADUC7023BCPZ62I is a fully integrated, 1 MSPS, 12-bit data acquisition system, incorporating high performance multichannel ADCs, 16-bit/32-bit MCUs, and Flash/EE memory on a single chip.

The ADC consists of up to 12 single-ended inputs. An additional four inputs are available but are multiplexed with the four DAC output pins. The ADC can operate in single-ended or differential input modes. The ADC input voltage is 0 V to VREF. A low drift band gap reference, temperature sensor, and voltage comparator complete the ADC peripheral set.

Specifications Of ADUC7023BCPZ62I

Features Of ADUC7023BCPZ62I
Analog I/O
Multichannel, 12-bit, 1 MSPS ADC
Up to 12 ADC channels
Fully differential and single-ended modes
0 V to VREF analog input range
12-bit voltage output DACs
4 DAC outputs available
On-chip voltage reference
On-chip temperature sensor
Voltage comparator
Microcontroller
ARM7TDMI core, 16-bit/32-bit RISC architecture
JTAG port supports code download and debug
Clocking options
Trimmed on-chip oscillator (±3%)
External watch crystal
External clock source up to 44 MHz
41.78 MHz PLL with programmable divider
Memory
62 kB Flash/EE memory, 8 kB SRAM
In-circuit download, JTAG-based debug
Software-triggered in-circuit reprogrammability
Vectored interrupt controller for FIQ and IRQ
8 priority levels for each interrupt type
Interrupt on edge or level external pin inputs
On-chip peripherals
2× fully I2C-compatible channels
SPI (20 Mbps in master mode, 10 Mbps in slave mode)
With 4-byte FIFO on input and output stages
Up to 20 GPIO pins - Digital only GPIOs are 5 V tolerant
3× general-purpose timers
Watchdog timer (WDT)
Programmable logic array (PLA)
16 PLA elements
16-bit, 5-channel PWM

Applications Of ADUC7023BCPZ62I
Optical networking
Industrial control and automation systems
Smart sensors, precision instrumentation
Base station systems
