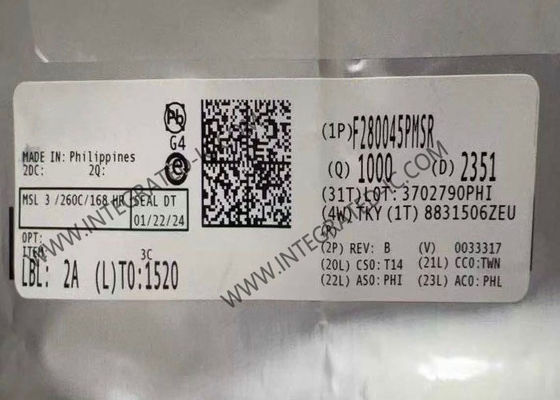

F280045PMSR Microcontroller MCU 100MHz C2000™ C28x Piccolo™ Microcontroller IC
The F280045PMSR is a powerful 32-bit floating-point microcontroller unit (MCU) that enables designers to integrate crucial control peripherals, differentiated analog, and nonvolatile memory on a single device. It supports up to 256KB (128KW) of flash memory divided into two 128KB (64KW) banks, allowing for parallel programming and execution. Additionally, it offers up to 100KB (50KW) of on-chip SRAM in blocks of 4KB (2KW) and 16KB (8KW) for efficient system partitioning. Features include Flash ECC, SRAM ECC/parity, and dual-zone security.
Product Attributes
| Series |
C2000™ C28x Piccolo™ |
| Core Processor |
C28x |
| Core Size |
32-Bit |
| Speed |
100MHz |
| Connectivity |
CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals |
Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O |
26 |
| Program Memory Size |
256KB (256K x 8) |
| Program Memory Type |
FLASH |
| RAM Size |
100K x 8 |
| Voltage - Supply (Vcc/Vdd) |
1.14V ~ 1.32V |
| Data Converters |
A/D 14x12b; D/A 2x12b |
| Oscillator Type |
Internal |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
| Mounting Type |
Surface Mount |
| Supplier Device Package |
64-LQFP (10x10) |
| Package / Case |
64-LQFP |
Key Features
- TMS320C28x 32-bit CPU at 100 MHz
- IEEE 754 single-precision Floating-Point Unit (FPU)
- Trigonometric Math Unit (TMU) with 3*-cycle to 4*-cycle improvement for common trigonometric functions
- Viterbi/Complex Math Unit (VCU-I)
- Ten hardware breakpoints (with ERAD)
- Programmable Control Law Accelerator (CLA) at 100 MHz with IEEE 754 single-precision floating-point instructions
- 256KB (128KW) of flash (ECC-protected) across two independent banks
- 100KB (50KW) of RAM (ECC-protected or parity-protected)
- Dual-zone security supporting third-party development
- Unique Identification (UID) number
- 1.2-V core, 3.3-V I/O design with internal VREG or DC-DC for single-supply designs
