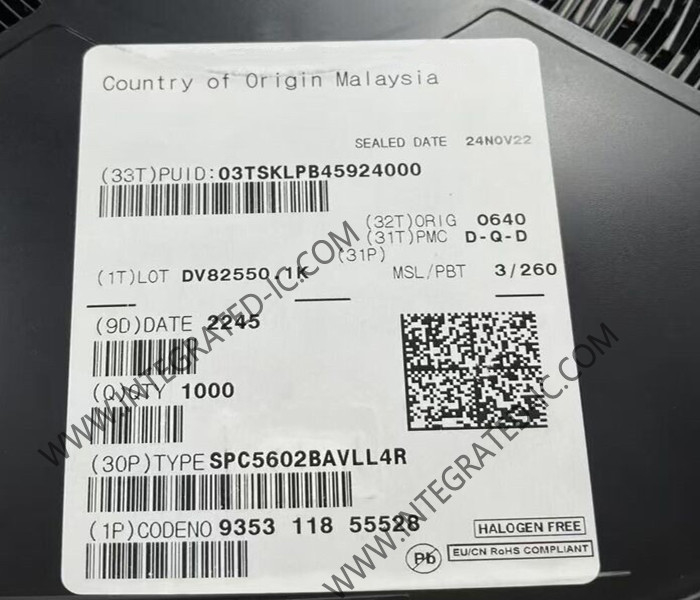

SPC5602BAVLL4R Microcontroller MCU 48MHz 32Bit Single Core Microcontroller IC LQFP100

SPC5602BAVLL4R Microcontroller MCU 48MHz 32Bit Single Core Microcontroller IC LQFP100

Product Description Of SPC5602BAVLL4R

SPC5602BAVLL4R is a family of next generation microcontrollers built on the Power Architecture® embedded category.
SPC5602BAVLL4R 32-bit microcontrollers is the latest achievement in integrated automotive application controllers. It belongs to an expanding family of automotive focused products designed to address the next wave of body electronics applications within the vehicle. It operates at speeds of up to 64 MHz and offers high performance processing optimized for low power consumption. It capitalizes on the available development infrastructure of current Power Architecture devices and is supported with software drivers, operating systems and configuration code to assist with users implementations.

Specification Of SPC5602BAVLL4R

Features Of SPC5602BAVLL4R

• Single issue, 32-bit CPU core complex (e200z0)
– Compliant with the Power Architecture® embedded category
– Includes an instruction set enhancement allowing variable length encoding (VLE) for code size footprint reduction. With the optional encoding of mixed 16-bit and 32-bit instructions, it is possible to achieve significant code size footprint reduction.
• Up to 512 KB on-chip code flash supported with the flash controller and ECC
• 64 (4 × 16) KB on-chip data flash memory with ECC
• Up to 48 KB on-chip SRAM with ECC
• Memory protection unit (MPU) with 8 region descriptors and 32-byte region granularity
• Interrupt controller (INTC) with 148 interrupt vectors, including 16 external interrupt sources and 18 external interrupt/wakeup sources
• Frequency modulated phase-locked loop (FMPLL)
• Crossbar switch architecture for concurrent access to peripherals, flash memory, or RAM from multiple bus masters
• Boot assist module (BAM) supports internal flash programming via a serial link (CAN or SCI)
• Timer supports input/output channels providing a range of 16-bit input capture, output compare, and pulse width modulation functions (eMIOS-lite)
• 10-bit analog-to-digital converter (ADC)
• 3 serial peripheral interface (DSPI) modules
• Up to 4 serial communication interface (LINFlex) modules
• Up to 6 enhanced full CAN (FlexCAN) modules with configurable buffers

• 1 inter IC communication interface (I2C) module
• Up to 123 configurable general purpose pins supporting input and output operations (package dependent)
• Real Time Counter (RTC) with clock source from128 kHz or 16 MHz internal RC oscillator supporting autonomous wakeup with 1 ms resolution with max timeout of 2 seconds
• Up to 6 periodic interrupt timers (PIT) with 32-bit counter resolution
• 1 System Module Timer (STM)
• Nexus development interface (NDI) per IEEE-ISTO 5001-2003 Class Two Plus standard
• Device/board boundary Scan testing supported with per Joint Test Action Group (JTAG) of IEEE (IEEE 1149.1)
• On-chip voltage regulator (VREG) for regulation of input supply for all internal levels
