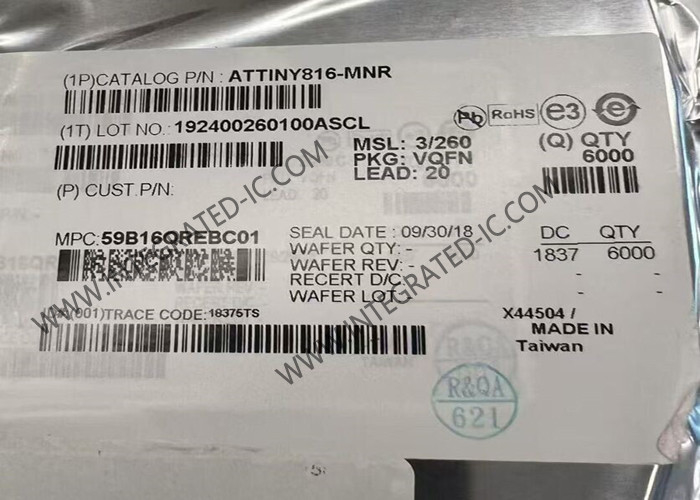

ATTINY816-MNR Microcontroller MCU 8-Bit AVR Microcontrollers 20MHz TinyAVR 1-Series MCU

ATTINY816-MNR Microcontroller MCU 8-Bit AVR Microcontrollers 20MHz TinyAVR 1-Series MCU​

Product Description Of ATTINY816-MNR

ATTINY816-MNR is members of the tinyAVR®1-series of microcontrollers, using the AVR® processor with hardware multiplier, running at up to 20 MHz, with 4/8 KB Flash, 256/512 bytes of SRAM, and 128 bytes of EEPROM in a 14-, 20- and 24-pin package. The tinyAVR®1-series uses the latest technologies with a flexible, low-power architecture, including Event System, accurate analog features, and Core Independent Peripherals (CIPs).Capacitive touch interfaces with Driven Shield+ and Boost Mode technologies are supported with the integrated Peripheral Touch Controller (PTC).

Specification Of ATTINY816-MNR

Features Of ATTINY816-MNR

• CPU
– AVR® CPU
– Running at up to 20 MHz
– Single-cycle I/O access
– Two-level interrupt controller
– Two-cycle hardware multiplier
• Memories
– 4/8 KB In-system self-programmable Flash memory
– 128 bytes EEPROM
– 256/512 bytes SRAM
– Write/erase endurance:
• Flash 10,000 cycles
• EEPROM 100,000 cycles
– Data retention:
• 40 years at 55°C
• System
– Power-on Reset (POR)
– Brown-out Detector (BOD)
– Clock options:
• 16/20 MHz low-power internal RC oscillator
• 32.768 kHz Ultra Low-Power (ULP) internal RC oscillator
• 32.768 kHz external crystal oscillator
• External clock input
– Single-Pin Unified Program and Debug Interface (UPDI)
– Three sleep modes:
• Idle with all peripherals running for immediate wake-up
• Standby
– Configurable operation of selected peripherals
• Power-Down with full data retention
• Temperature Ranges:
– -40°C to 105°C
– -40°C to 125°C
• Speed Grades:
– 0-5 MHz @ 1.8V – 5.5V
– 0-10 MHz @ 2.7V – 5.5V
– 0-20 MHz @ 4.5V – 5.5V
