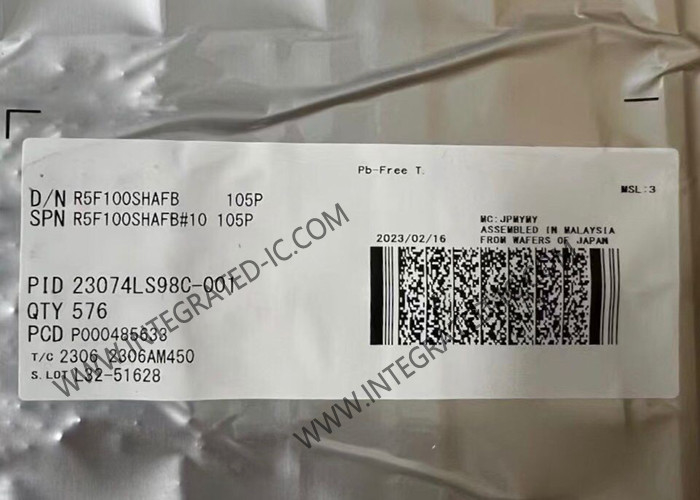

R5F100SHAFB Microcontroller MCU Low Power High Function RL78/G13 Microcontrollers
R5F100SHAFB Microcontroller MCU Low Power High Function RL78/G13 Microcontrollers
Description
Part Number:
R5F100SHAFB
Program Memory Size::
192 KB
Data RAM Size::
16 KB
Maximum Clock Frequency::
32 MHz
ADC Resolution::
8 Bit/10 Bit
Number Of I/Os::
120 I/O
R5F100SHAFB Microcontroller MCU Low Power High Function RL78/G13 Microcontrollers
Product Description Of R5F100SHAFB
R5F100SHAFB RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to industrial equipment.
Specifications Of R5F100SHAFB
RL78
192 kB
16 kB
LFQFP-128
32 MHz
8 bit/10 bit
120 I/O
1.6 V
5.5 V
16 bit
- 40 C
+ 85 C
Analogue Supply Voltage:
1.6 V to 5.5 V
Data RAM Type:
SRAM
Interface Type:
I2C, UART
Number of ADC Channels:
26 Channel
Number of Timers/Counters:
16 x 16 bit
Features Of R5F100SHAFB
CPU: RL78 core, Max. 32MHz
Voltage: 1.6V to 5.5V
Package: 64-pin HTFQFP, 24 to 48-pin HWQFN, 48 to 128-pin LFQFP, 44 to 100-pin LQFP, 20 to 30-pin LSSOP, 64-pin VFBGA, 25 to 36-pin WFLGA
Memory: SRAM Max. 32KB, Program Flash Max. 512KB
Timer: 16-bit Timer (ch) x 8, 8-bit Timer (ch) x 8, Watchdog Timer (ch) x 1, Interval Timer x 1 ch
PWM: PWM Output x 7
Analog function: 10-bit A/D Converter (ch) x 9
On-chip Oscillator Freq. (MHz): High-Speed: 32, 24, 16, 12, 8, 4, 1MHz
Low-speed: 15kHz
Others: RTC, Power-On Reset, Low Voltage Detection
Applications Of R5F100SHAFB
Smart Grid Fault Indicator Unit
Tankless Gas Water Heater with Remote Control
Smart Earbuds Case Charger
Household Water Pump
Critical Power Monitoring System
Personal Safety Tracker
DTDS-622C LoRa Modem
Smart Water Purifier System
Heat Pump Control System
DALI Solutions
Unified Speed Control Platform for BLDC Ceiling Fans
LoRaWAN Street Light Controller
Office Automation
Home Appliance
Healthcare
Security
Documentation
