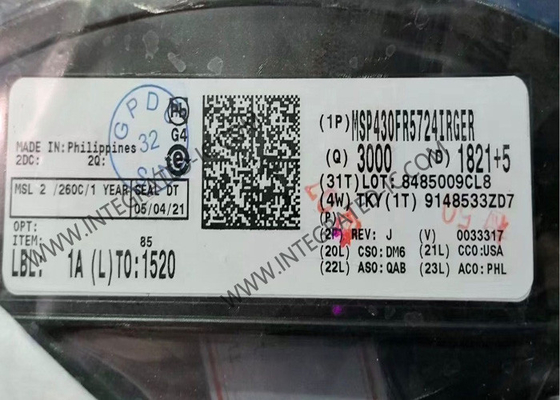

MSP430FR5724IRGER Microcontroller MCU 8MHz Ultra-Low-Power Mixed-Signal Microcontrollers

MSP430FR5724IRGER Microcontroller MCU 8MHz Ultra-Low-Power Mixed-Signal Microcontrollers

Product Description Of MSP430FR5724IRGER
MSP430FR5724IRGER ultra-low-power microcontrollers consists of multiple devices that feature embedded FRAM nonvolatile memory, ultra-low-power 16-bit MSP430™ CPU, and different peripherals targeted for various applications. The architecture, FRAM, and peripherals, combined with seven low-power modes, are optimized to achieve extended battery life in portable and wireless sensing applications. FRAM is a new nonvolatile memory that combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption. Peripherals include a 10-bit ADC, a 16-channel comparator with voltage reference generation and hysteresis capabilities, three enhanced serial channels capable of I2C, SPI, or UART protocols, an internal DMA, a hardware multiplier, an RTC, five 16-bit timers, and digital I/Os.

Specification Of MSP430FR5724IRGER

Features Of MSP430FR5724IRGER
Embedded Microcontroller
16-Bit RISC Architecture up to 8-MHz Clock
Wide Supply Voltage Range (2 V to 3.6 V)
–40°C to 85°C Operation
Optimized Ultra-Low-Power Modes
Active Mode: 81.4 µA/MHz (Typical)
Standby (LPM3 With VLO): 6.3 µA (Typical)
Real-Time Clock (RTC) (LPM3.5 With Crystal): 1.5 µA (Typical)
Shutdown (LPM4.5): 0.32 µA (Typical)
Ultra-Low-Power Ferroelectric RAM (FRAM)
Up to 16KB of Nonvolatile Memory
Ultra-Low-Power Writes
Fast Write at 125 ns per Word (16KB in 1 ms)
Built-In Error Correction Coding (ECC) and Memory Protection Unit (MPU)
Universal Memory = Program + Data + Storage
1015 Write Cycle Endurance
Radiation Resistant and Nonmagnetic
Intelligent Digital Peripherals
32-Bit Hardware Multiplier (MPY)
Three-Channel Internal DMA
Real-Time Clock (RTC) With Calendar and Alarm Functions
Five 16-Bit Timers With up to Three Capture/Compare Registers
16-Bit Cyclic Redundancy Checker (CRC)
High-Performance Analog
16-Channel Analog Comparator With Voltage Reference and Programmable Hysteresis
12-Channel 10-Bit Analog-to-Digital Converter (ADC) With Internal Reference and Sample-and-Hold
200 ksps at 100-µA Consumption
Enhanced Serial Communication
eUSCI_A0 and eUSCI_A1 Support:
UART With Automatic Baud-Rate Detection
IrDA Encode and Decode
SPI
eUSCI_B0 Supports:
I2C With Multiple-Slave Addressing
SPI
Hardware UART Bootloader (BSL)
Power Management System
Fully Integrated LDO
Supply Voltage Supervisor for Core and Supply Voltages With Reset Capability
Always-On Zero-Power Brownout Detection
Serial Onboard Programming With No External Voltage Needed
Flexible Clock System
Fixed-Frequency DCO With Six Selectable Factory-Trimmed Frequencies (Device Dependent)
Low-Power Low-Frequency Internal Clock Source (VLO)
32-kHz Crystals (LFXT)
High-Frequency Crystals (HFXT)
