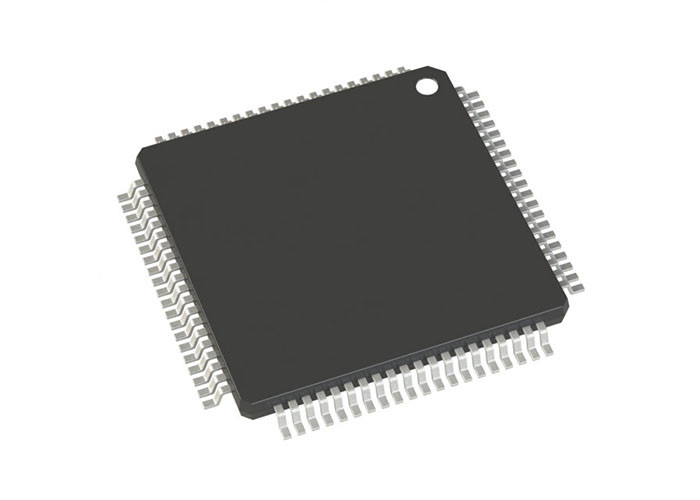

R5F524T8ADFN Microcontroller MCU RX24T 32-Bit Microcontroller For Home appliances
Product Description Of R5F524T8ADFN
The R5F524T8ADFN is a 32-bit microcontroller designed specifically for dual-inverter control. It features an integrated floating-point unit (FPU) to simplify the programming of complex algorithms and supports the simultaneous driving of two motors. The R5F524T8ADFN is based on the RXv2 CPU core, operating at a clock speed of 80 MHz with a performance of 153.6 DMIPS, and supports 32-bit multiply-accumulate and 16-bit multiply-subtract instructions.
Specifications Of R5F524T8ADFN
Core Processor: RXv2
Core Specifications: 32-bit
Clock Speed: 80 MHz
Connectivity: I2C, SCI, SPI
Peripherals: DMA, LVD, POR, PWM, WDT
Number of I/O Pins: 60
Programme Memory Capacity: 128KB (128K x 8)
Programme Memory Type: Flash
EEPROM Capacity: 8K x 8
RAM Size: 16K x 8
Supply Voltage (Vcc/Vdd): 2.7V ~ 5.5V
Data converters: A/D 17x12b; D/A 1x8b
Oscillator type: Internal
Operating temperature: -40°C to 85°C (TA)
Mounting type: Surface mount
Package: 80-LFQFP (12x12)
Application Of R5F524T8ADFN
Industrial
Office automation
Household appliances
