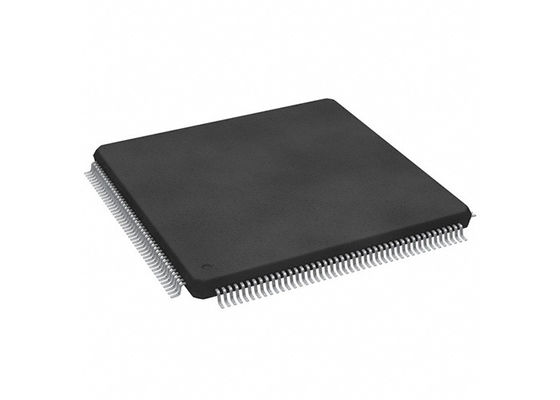

SPC56EC70L7C9E0X Microcontroller MCU 32-Bit Dual-Core MCU ForAutomotive Body And Gateway Applications

SPC56EC70L7C9E0X Microcontroller MCU 32-Bit Dual-Core MCU ForAutomotive Body And Gateway Applications

Product Description Of SPC56EC70L7C9E0X
SPC56EC70L7C9E0X is a new family of next generation microcontrollers built on the Power Architecture embedded category.

SPC56EC70L7C9E0X expands the range of the SPC560B microcontroller family. It provides the scalability needed to implement platform approaches and delivers the performance required by increasingly sophisticated software architectures. The advanced and cost-efficient host processor core of the SPC56EC70L7C9E0X automotive controller family complies with the Power Architecture embedded category, which is 100 percent user-mode compatible with the original Power Architecture user instruction set architecture (UISA). It operates at speeds of up to 120 MHz and offers high performance processing optimized for low power consumption. It also capitalizes on the available development infrastructure of current Power Architecture devices and is supported with software drivers, operating systems and configuration code to assist with users implementations.

Specifications Of SPC56EC70L7C9E0X

Features Of SPC56EC70L7C9E0X
e200z4d, 32-bit Power Architecture®
up to 120 MHz and 200 MIPs operation
e200z0h, 32-bit Power Architecture
up to 80 MHz and 75 MIPs operation
Memory
Up to 3 MByte on-chip Flash with ECC
Up to 256 KByte on-chip SRAM with ECC
64KByte on-chip Data Flash with ECC
16-entry memory protection unit (MPU)
User selectable Memory BIST
Interrupts
255 interrupt sources with 16 priority levels
Up to 54 ext. IRQ including 30 wake-up
GPIOs: from 147 (LQFP176) to 199 (LBGA256)
System timer units
8-ch. 32-bit periodic interrupt timer (PIT)
4-channel 32-bit system timer (STM)
Safety System Watchdog Timer (SWT)
Real-time clock timer (RTC/API)
eMIOS, 16-bit counter timed I/O units
Up to 64 channels with PWM/MC/IC/OC
Two ADC (10-bit and 12-bit)
Up to 62 channels extendable to 90 ch.
Multiple Analog Watchdog
Dedicated diagnostic features for lighting
Advanced shiffted PWM generation
ADC conversion synchronized on PWM
Communication interfaces
Up to 6 FlexCAN with 64 buffers each
Up to 10 LINFlex/UART channels
Up to 8 buffered DSPI channels
I2C interface
One FleyRay (dual-ch.) with 128 buffers
Fast Ethernet Controller
Cryptographic Services Engine (CSE)
AES-128 en/decryption, CMAC auth.
Secured device boot mode
32-ch. eDMA with multiple request sources
Clock generation
4 to 40 MHz main oscillator
16 MHz internal RC oscillator
Software-controlled FMPLL
128 kHz internal RC oscillator
32 kHz auxiliary oscillator
Clock Monitoring Unit (CMU)
Low power capabilities
Ultra low power STANDBY
CAN Sampler to store CAN ID in STBY
Fast wake-up and exectute from RAM
Exhaustive debugging capability
Nexus 3+ interface on LBGA256 only
Nexus 1 on all devices
Voltage supply
Single 5 V or 3.3 V supply
On-chip Vreg with external ballast transitor
Operating temperature range -40 to 125 °C
