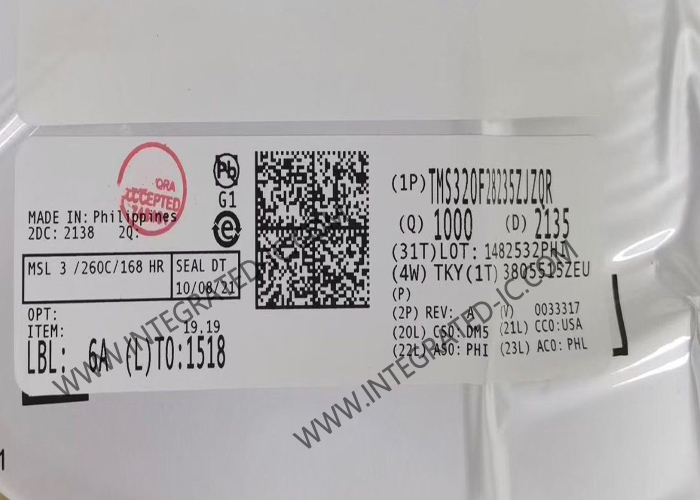

TMS320F28235ZJZQR Microcontroller MCU High-Performance 150MHz C2000™ 32-Bit MCU

TMS320F28235ZJZQR Microcontroller MCU High-Performance 150MHz C2000™ 32-Bit MCU

Product Description Of TMS320F28235ZJZQR
TMS320F28235ZJZQR is highly integrated, high-performance solutions for demanding control applications.

Specification Of TMS320F28235ZJZQR

Feature Of TMS320F28235ZJZQR
High-performance static CMOS technology
Up to 150 MHz (6.67-ns cycle time)
1.9-V/1.8-V core, 3.3-V I/O design
High-performance 32-bit CPU (TMS320C28x)
IEEE 754 single-precision Floating-Point Unit (FPU) (F2833x only)
16 × 16 and 32 × 32 MAC operations
16 × 16 dual MAC
Harvard bus architecture
Fast interrupt response and processing
Unified memory programming model
Code-efficient (in C/C++ and Assembly)
Six-channel DMA controller (for ADC, McBSP, ePWM, XINTF, and SARAM)
16-bit or 32-bit External Interface (XINTF)
More than 2M × 16 address reach
Enhanced control peripherals
Up to 18 PWM outputs
Up to 6 HRPWM outputs with 150-ps MEP resolution
Up to 6 event capture inputs
Up to 2 Quadrature Encoder interfaces
Up to 8 32-bit timers (6 for eCAPs and 2 for eQEPs)
Up to 9 16-bit timers (6 for ePWMs and 3 XINTCTRs)
Three 32-bit CPU timers
Serial port peripherals
Up to 2 CAN modules
Up to 3 SCI (UART) modules
Up to 2 McBSP modules (configurable as SPI)
One SPI module
One Inter-Integrated Circuit (I2C) bus
12-bit ADC, 16 channels
80-ns conversion rate
2 × 8 channel input multiplexer
Two sample-and-hold
Single/simultaneous conversions
Internal or external reference
Up to 88 individually programmable, multiplexed GPIO pins with input filtering
JTAG boundary scan support
IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
Advanced debug features
Analysis and breakpoint functions
Real-time debug using hardware
Development support includes
ANSI C/C++ compiler/assembler/linker
Code Composer Studio™ IDE
DSP/BIOS™ and SYS/BIOS
Digital motor control and digital power software libraries
Low-power modes and power savings
IDLE, STANDBY, HALT modes supported
Disable individual peripheral clocks
Endianness: Little endian

Application Of TMS320F28235ZJZQR
• Advanced driver assistance systems (ADAS)
– Medium/short range radar
• Building automation
– HVAC motor control
– Traction inverter motor control
• Factory automation & control
– Automated sorting equipment
– CNC control
• Grid infrastructure
– Central inverter
– String inverter
• Hybrid, electric & powertrain systems
– Inverter & motor control
– On-board (OBC) & wireless charger
• Motor drives
– AC-input BLDC motor drive
– Servo drive control module
• Power delivery
– Industrial AC-DC
