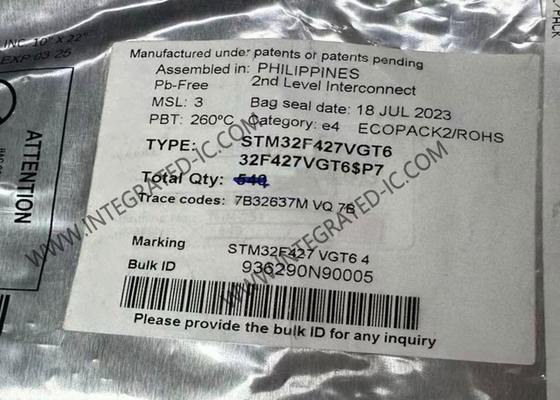

STM32F427VGT6 Microcontroller MCU High-Performance 32-Bit 180MHz ARM Cortex-M4 MCU

STM32F427VGT6 Microcontroller MCU High-Performance 32-Bit 180MHz ARM Cortex-M4 MCU

Product Description Of STM32F427VGT6
STM32F427VGT6 is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision, which supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

Specification Of STM32F427VGT6

Features Of STM32F427VGT6
Includes ST state-of-the-art patented technology.
Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Memories
512 bytes of OTP memory
Up to 2 MB of flash memory organized into two banks allowing read-while-write
Up to 256+4 KB of SRAM including 64 KB of CCM (core coupled memory) data RAM
Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, compact flash/NOR/NAND memories
LCD parallel interface, 8080/6800 modes
LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)
Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
Clock, reset, and supply management
1.7 V to 3.6 V application supply and I/Os
POR, PDR, PVD, and BOR
4-to-26 MHz crystal oscillator
Internal 16 MHz factory-trimmed RC (1% accuracy)
32 kHz oscillator for RTC with calibration
Internal 32 kHz RC with calibration
Sleep, Stop, and Standby modes
VBAT supply for RTC, 20×32-bit backup registers + optional 4 KB backup SRAM
3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
2×12-bit D/A converters
General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
Up to 17 timers: up to twelve 16-bit and two 32-
Debug mode
SWD & JTAG interfaces
Cortex®-M4 Trace Macrocell™
Up to 168 I/O ports with interrupt capability
Up to 164 fast I/Os up to 90 MHz
Up to 166 5 V-tolerant I/Os
Up to 21 communication interfaces
Up to 3 × I2C interfaces (SMBus/PMBus)
Up to four USARTs/4 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
Up to 6 SPIs (45 Mbit/s), 2 with muxed full-duplex I2S for audio class accuracy via internal audio PLL or external clock
1 x SAI (serial audio interface)
2 × CAN (2.0B active) and SDIO interface
Advanced connectivity
USB 2.0 full-speed device/host/OTG controller with on-chip PHY
USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
8- to 14-bit parallel camera interface up to 54 Mbytes/s
True random number generator
CRC calculation unit
RTC: subsecond accuracy, hardware calendar
