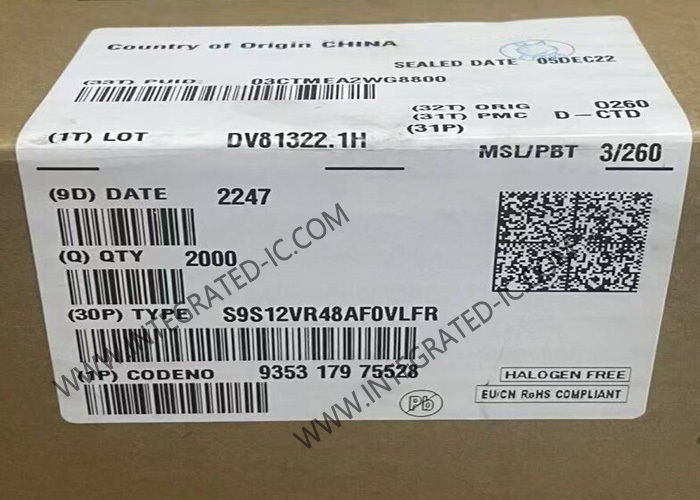

S9S12VR48AF0VLFR Microcontroller MCU 16-Bit 25MHz S12 MagniV Microcontroller IC 48-LQFP
S9S12VR48AF0VLFR Microcontroller MCU 16-Bit 25MHz S12 MagniV Microcontroller IC 48-LQFP
Description
Part Number:
S9S12VR48AF0VLFR
Core::
S12
Program Memory Size::
48 KB
Data RAM Size::
2 KB
Maximum Clock Frequency::
25 MHz
ADC Resolution::
10 Bit
S9S12VR48AF0VLFR Microcontroller MCU 16-Bit 25MHz S12 MagniV Microcontroller IC 48-LQFP
Product Description Of S9S12VR48AF0VLFR
S9S12VR48AF0VLFR is an optimized automotive 16-bit microcontroller product line focused on low-cost, high-performance, and low pin-count. This family integrates an S12 microcontroller with a LIN Physical interface, a 5V regulator system to supply the microcontroller, and analog blocks to control other elements of the system which operate at vehicle battery level (e.g. relay drivers, high-side driver outputs, wake up inputs).
Specification Of S9S12VR48AF0VLFR
S12
48 kB
2 kB
LQFP-48
25 MHz
10 bit
28 I/O
1.8 V
1.8 V
16 bit
- 40 C
+ 105 C
Data RAM Type:
RAM
Data ROM Size:
512 B
Data ROM Type:
EEPROM
I/O Voltage:
3.15 V to 5.5 V
Interface Type:
LIN, SCI, SPI
Moisture Sensitive:
Yes
Number of ADC Channels:
6 Channel
Number of Timers/Counters:
4 Timer
Unit Weight:
178.250 mg
Applications Of S9S12VR48AF0VLFR
Anti-Pinch Window Lift
Sunroof
Automatic Doors
Power Lift Gate
Seat Adjustment
Seat Heating
Small LIN Node
