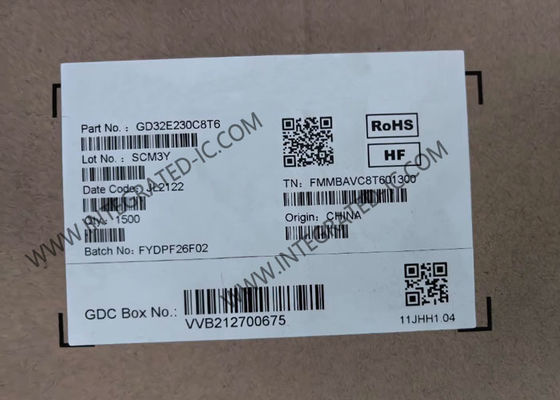

GD32E230C8T6 Microcontroller MCU 32-Bit Microcontrollers 72MHz ARM Cortex M23 MCU

GD32E230C8T6 is a 32-bit microcontroller based on the Cortex®-M23 core, featuring 64 KB of flash memory, 8 KB of SRAM, 39 I/O pins, and support for a variety of communication and peripheral functions.

GD32E230C8T6 belongs to the value line of GD32 MCU family. GD32E230C8T6 is a new 32-bit general-purpose microcontroller based on the ARM® Cortex®-M23 core. The Cortex-M23 processor is an energy-efficient processor with a very low gate count. It is intended to be used for microcontroller and deeply embedded applications that require an area-optimized processor. The processor delivers high energy efficiency through a small but powerful instruction set and extensively optimized design, providing high-end processing hardware including a single-cycle multiplier and a 17-cycle divider.

• ARM® Cortex®-M23 32-bit processor core
• Operating at up to 72 MHz frequency with Flash accesses 0~2
• Up to 64 KB embedded Flash memory
• Up to 8 KB SRAM memory
• An extensive range of enhanced I/Os and peripherals connected to two APB buses
• One 12-bit ADC and one comparator
• Up to five general 16-bit timers, a basic timer, a PWM advanced timer
• Standard and advanced communication interfaces: up to two SPIs, two I2Cs, two USARTs, and an I2S
