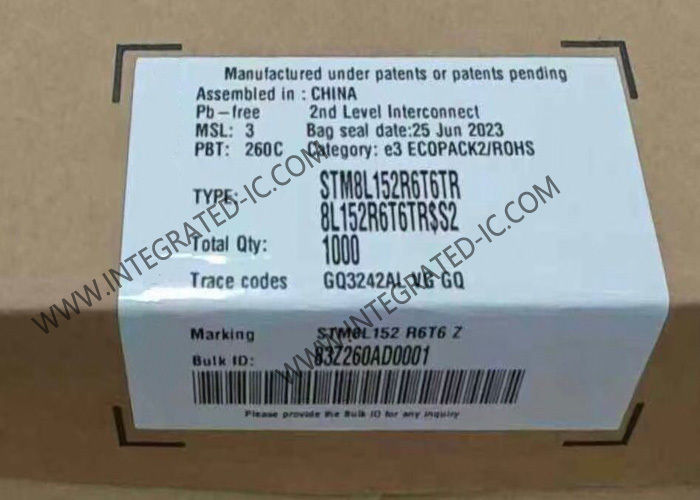

STM8L152R6T6TR Microcontroller MCU Ultra-Low-Power 8-Bit 16MHz STM8L Microcontroller 64-LQFP

STM8L152R6T6TR ultra-low-power devices feature an enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low-power operations.

• Operating conditions: Operating power supply: 1.65 to 3.6 V (without BOR), 1.8 to 3.6 V (with BOR). Temp. range: -40 to 85, 105 or 125 °C
• Low-power features: 5 low-power modes: Wait, Low-power run (5.9 μA), Low-power wait (3 μA), Active-halt with full RTC (1.4 μA), Halt (400 nA). Consumption: 200 μA/MHz+330 μA. Fast wake up from Halt mode (4.7 μs). Ultra low leakage per I/0: 50 nA
• Advanced STM8 core: Harvard architecture and 3-stage pipeline. Max freq: 16 MHz, 16 CISC MIPS peak. Up to 40 external interrupt sources
• Reset and supply management: Low-power, ultra safe BOR reset with five programmable thresholds. Ultra-low-power POR/PDR. Programmable voltage detector (PVD)
• Clock management: 32 kHz and 1-16 MHz crystal oscillators. Internal 16 MHz factory-trimmed RC and 38 kHz low consumption RC. Clock security system
• Low-power RTC: BCD calendar with alarm interrupt. Digital calibration with +/- 0.5ppm accuracy. Advanced anti-tamper detection
• LCD: 8x40 or 4x44 w/ step-up converter
• DMA: 4 ch. for ADC, DACs, SPIs, I2C, USARTs, Timers, 1 ch. for memory-to-memory
• 2x12-bit DAC (dual mode) with output buffer
• 12-bit ADC up to 1 Msps/28 channels
• Temp. sensor and internal ref. voltage
• Memories: Up to 64-Kbytes of Flash memory with up to 2 Kbytes of data EEPROM with ECC and RWW. Flexible write/read protection modes. Up to 4 Kbytes of RAM
• 2 ultra-low-power comparators: 1 with fixed threshold and 1 rail to rail. Wake up capability
• Timers: Three 16-bit timers with 2 channels (IC, OC, PWM), quadrature encoder. One 16-bit advanced control timer with 3 channels, supporting motor control. One 8-bit timer with 7-bit prescaler. One window, one independent watchdog. Beeper timer with 1, 2 or 4 kHz frequencies
• Communication interfaces: Two synchronous serial interface (SPI). Fast I2C 400 kHz SMBus and PMBus. Three USARTs (ISO 7816 interface + IrDA)
• Up to 67 I/Os, all mappable on interrupt vectors
• Up to 16 capacitive sensing channels supporting touchkey, proximity, linear touch and rotary touch sensors
• Fast on-chip programming and non-intrusive debugging with SWIM, Bootloader using USART
• 96-bit unique ID
