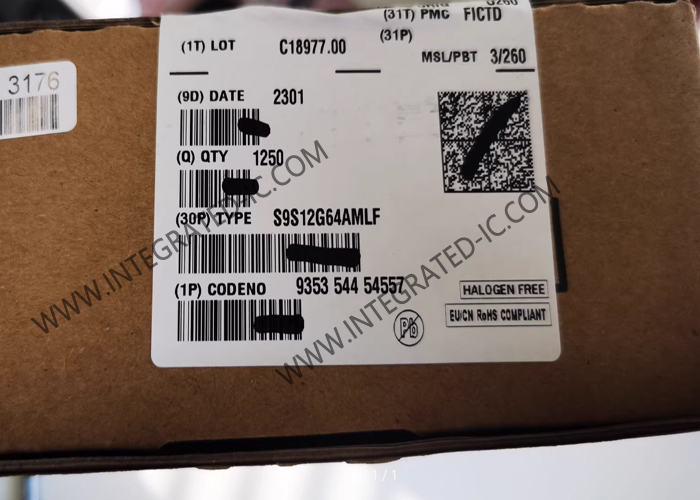

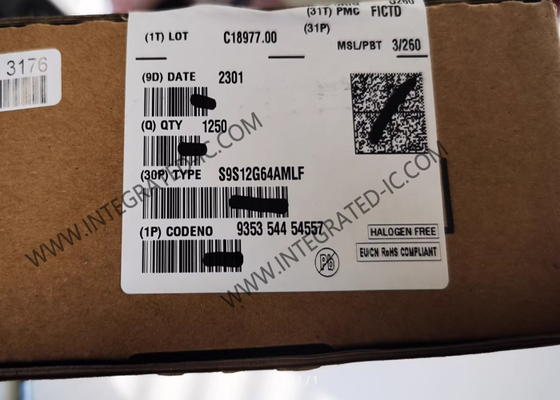

S9S12G64AMLF Microcontroller MCU 16-Bit 25MHz 64KB Flash Microcontroller 48-LQFP
Product Description
S9S12G64AMLF is 16-Bit 25MHz 64KB Flash Microcontroller,optimized for lower program memory sizes down to 16k. In order to simplify customer use it features an EEPROM with a small 4 bytes erase sector size.
Specifications
|
Core Processor
|
|
|
Core Size
|
|
|
Speed
|
|
|
Connectivity
|
CANbus, IrDA, LINbus, SCI, SPI
|
|
Peripherals
|
|
|
Number of I/O
|
|
|
Program Memory Size
|
64KB (64K x 8)
|
|
Program Memory Type
|
|
|
EEPROM Size
|
|
|
RAM Size
|
|
|
Voltage - Supply (Vcc/Vdd)
|
|
|
Data Converters
|
|
|
Oscillator Type
|
|
|
Operating Temperature
|
|
Features
S12 CPU core
Up to 240 Kbyte on-chip flash with ECC
Up to 4 Kbyte EEPROM with ECC
Up to 11 Kbyte on-chip SRAM
Phase locked loop (IPLL) frequency multiplier with internal filter
4–16 MHz amplitude controlled Pierce oscillator
1 MHz internal RC oscillator
Timer module (TIM) supporting up to eight channels that provide a range of 16-bit input capture, output compare, counter, and pulse accumulator functions
Pulse width modulation (PWM) module with up to eight x 8-bit channels
Up to 16-channel, 10 or 12-bit resolution successive approximation analog-to-digital converter (ADC)
Up to two 8-bit digital-to-analog converters (DAC)
Up to one 5V analog comparator (ACMP)
Up to three serial peripheral interface (SPI) modules
Up to three serial communication interface (SCI) modules supporting LIN communications
Up to one multi-scalable controller area network (MSCAN) module (supporting CAN protocol 2.0A/B)
On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages
Autonomous periodic interrupt (API)
Precision fixed voltage reference for ADC conversions
Optional reference voltage attenuator module to increase ADC accuracy
