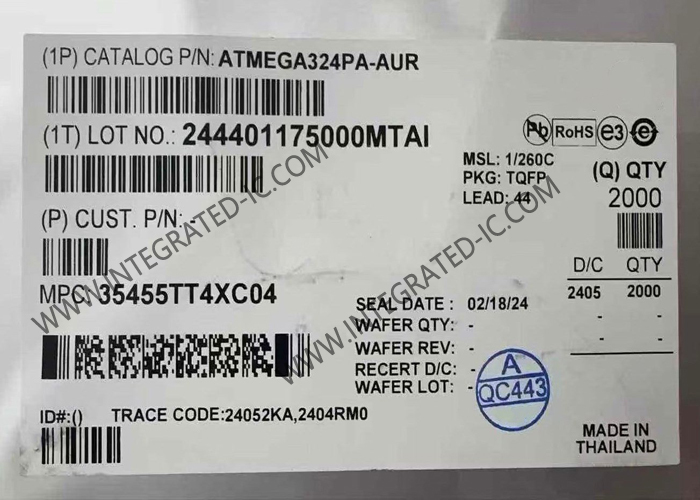

ATMEGA324PA-AUR Microcontroller MCU 8-Bit 20MHz 32KB Flash AVR Microcontroller 44-TQFP

ATMEGA324PA-AUR Microcontroller MCU 8-Bit 20MHz 32KB Flash AVR Microcontroller 44-TQFP

Product Description
ATMEGA324PA-AUR is a low power, CMOS 8-bit microcontrollers based on the AVR® enhanced RISC architecture. The ATMEGA324PA-AUR is a 44-pins device ranging from 16 KB to 128 KB Flash, with 1 KB to 16 KB SRAM, 512 Bytes to 4 KB EEPROM. By executing instructions in a single clock cycle, the devices achieve CPU throughput approaching one million instructions per second (MIPS) per megahertz, allowing the system designer to optimize power consumption versus processing speed.

Specification

Features
High-performance, low-power 8-bit AVR® Microcontroller
Advanced RISC architecture
131 powerful Instructions – most single-clock cycle execution
32 × 8 general purpose working registers
Fully static operation
Up to 20MIPS throughput at 20MHz
On-chip 2-cycle multiplier
High endurance non-volatile memory segments
16/32/64/128KBytes of In-System Self-programmable Flash program memory
512/1K/2K/4KBytes EEPROM
1/2/4/16KBytes Internal SRAM
Write/Erase Cycles: 10,000 Flash/ 100,000 EEPROM
Data retention: 20 years at 85°C/ 100 years at 25°C(1)
Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
Programming Lock for Software Security
Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
One/two 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
Real Time Counter with Separate Oscillator
Six PWM Channels
8-channel, 10-bit ADC
Differential mode with selectable gain at 1×, 10× or 200×
Byte-oriented Two-wire Serial Interface
Two Programmable Serial USART
Master/Slave SPI Serial Interface
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
Interrupt and Wake-up on Pin Change
