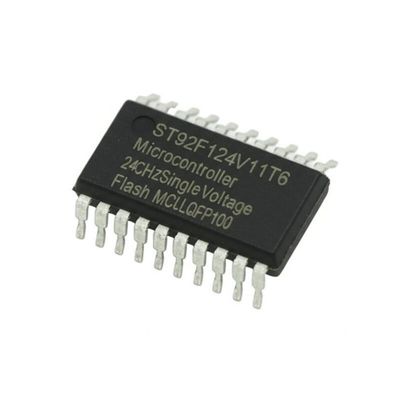

ST92F124V1T6 Microcontroller MCU 8-Bit 24MHz Single Voltage Flash MCU in LQFP100 Package

The ST92F124V1T6 is an 8-bit single voltage Flash Microcontroller featuring a flexible 256-register programming model for ultra-fast context switching and real-time event response.

• Internal memory: Single Voltage Flash up to 256 Kbytes, RAM up to 8 Kbytes, 1 Kbyte E3 TM (Emulated EEPROM)
• In-Application Programming (IAP)
• 224 general purpose registers available as RAM, accumulators or index pointers

• Register-oriented 8/16 bit CORE with RUN, WFI, SLOW, HALT and STOP modes
• 0-24 MHz Operation (Int. Clock), 4.5-5.5 V range
• PLL Clock Generator (3-5 MHz crystal)
• Minimum instruction time: 83 ns (24 MHz int. clock)

• Up to 80 I/O pins
• 4 external fast interrupts + 1 NMI
• Up to 16 pins programmable as wake-up or additional external interrupt with multi-level interrupt handler
• DMA controller for reduced processor overhead

• 16-bit Timer with 8-bit Prescaler, and Watchdog Timer (activated by software or by hardware)
• 16-bit Standard Timer for independent time base generation
• Two 16-bit independent Extended Function Timers (EFTs) with Prescaler
• Two 16-bit Multifunction Timers with Prescaler
