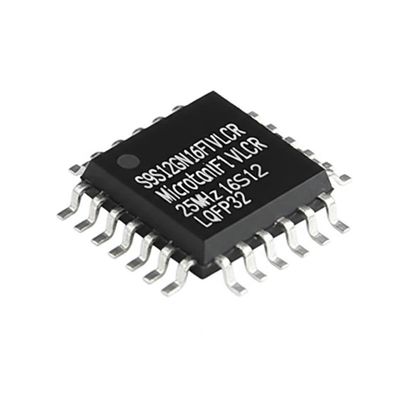

S9S12GN16F1VLCR Microcontroller MCU 25MHz 16-Bit HCS12 Microcontroller IC LQFP32
Product Description
The S9S12GN16F1VLCR is an optimized, automotive-grade 16-bit microcontroller designed for lower program memory sizes down to 16KB. It features an EEPROM with a small 4-byte erase sector size for simplified customer use. This microcontroller is specifically targeted at generic automotive applications requiring CAN or LIN/J2602 communication, including body controllers, occupant detection, door modules, seat controllers, RKE receivers, smart actuators, lighting modules, and smart junction boxes.
Specifications
| Series |
HCS12 |
| Core Processor |
12V1 |
| Core Size |
16-Bit |
| Speed |
25MHz |
| Connectivity |
IrDA, LINbus, SCI, SPI |
| Peripherals |
LVD, POR, PWM, WDT |
| Number of I/O |
26 |
| Program Memory Size |
16KB (16K x 8) |
| Program Memory Type |
FLASH |
| EEPROM Size |
512 x 8 |
| RAM Size |
1K x 8 |
| Voltage - Supply (Vcc/Vdd) |
3.13V ~ 5.5V |
| Data Converters |
A/D 8x10b |
| Oscillator Type |
Internal |
| Operating Temperature |
-40°C ~ 105°C (TA) |
| Mounting Type |
Surface Mount |
| Supplier Device Package |
32-LQFP (7x7) |
| Package / Case |
32-LQFP |
Key Features
- S12 CPU core
- Up to 240 Kbyte on-chip flash with ECC
- Up to 4 Kbyte EEPROM with ECC
- Up to 11 Kbyte on-chip SRAM
- Phase locked loop (IPLL) frequency multiplier with internal filter
- 4-16 MHz amplitude controlled Pierce oscillator
- 1 MHz internal RC oscillator
- Timer module (TIM) supporting up to eight channels
- Pulse width modulation (PWM) module with up to eight x 8-bit channels
- Up to 16-channel, 10 or 12-bit resolution successive approximation analog-to digital converter (ADC)
- Up to two 8-bit digital-to-analog converters (DAC)
- Up to one 5V analog comparator (ACMP)
- Up to three serial peripheral interface (SPI) modules
- Up to three serial communication interface (SCI) modules supporting LIN communications
- Up to one multi-scalable controller area network (MSCAN) module (supporting CAN protocol 2.0A/B)
- On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages
- Autonomous periodic interrupt (API)
- Precision fixed voltage reference for ADC conversions
- Optional reference voltage attenuator module to increase ADC accuracy
