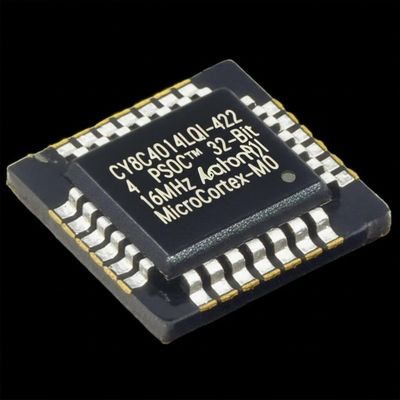

CY8C4014LQI-422 Microcontroller MCU PSoC 4 32-Bit ARM Cortex-M0 with 16MHz Clock and 16 kB Flash Memory

Large Image : CY8C4014LQI-422 Microcontroller MCU PSoC 4 32-Bit ARM Cortex-M0 with 16MHz Clock and 16 kB Flash Memory

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	CY8C4014LQI-422

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-24
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

CY8C4014LQI-422 Microcontroller MCU PSoC 4 32-Bit ARM Cortex-M0 with 16MHz Clock and 16 kB Flash Memory

Description

Part Number:	CY8C4014LQI-422	Core::	ARM Cortex M0
Program Memory Size::	16 KB	Data Bus Width::	32 Bit
Maximum Clock Frequency::	16 MHz	Number Of I/Os::	20 I/O
Highlight:	32-Bit Microcontroller MCU , 16MHz PSoC 4 , 16 kB Flash ARM Cortex-M0

CY8C4014LQI-422 Microcontroller MCU PSOC™ 4 32-Bit 16MHz ARM Cortex-M0 Microcontroller

Product Description

The CY8C4014LQI-422 PSoC® 4 is a scalable and reconfigurable platform architecture for programmable embedded system controllers featuring an Arm® Cortex™-M0 CPU. This innovative solution combines programmable analog and digital blocks with flexible automatic routing. As the smallest member of the PSoC 4 platform architecture, the PSoC 4000 product family integrates microcontroller capabilities with standard communication peripherals, best-in-class capacitive touch-sensing (CapSense), and general-purpose analog functionality. Designed for upward compatibility with other PSoC 4 platform members, it supports evolving application requirements.

Specifications

Core Processor	ARM® Cortex®-M0
Core Size	32-Bit
Speed	16MHz
Connectivity	I2C
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	20
Program Memory Size	16KB (16K x 8)
Program Memory Type	FLASH
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	1.71V ~ 5.5V
Data Converters	D/A 1x7b, 1x8b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)

Key Features

32-bit MCU Subsystem with 16-MHz Arm Cortex-M0 CPU
Up to 16 KB of flash with Read Accelerator and 2 KB of SRAM
Programmable Analog including two current DACs (IDACs) and low-power comparator
Low Power operation from 1.71-V to 5.5-V with Deep Sleep mode
Capacitive Sensing with best-in-class SNR and water tolerance
Multi-master I2C block with wake-up on address match capability
One 16-bit timer/counter/pulse-width modulator (TCPWM) block
Up to 20 Programmable GPIO Pins with configurable drive modes
Available in multiple package options: 28-pin SSOP, 24-pin QFN, 16-pin SOIC/QFN, 16 ball WLCSP, and 8-pin SOIC
PSoC Creator Design Environment with schematic design entry and automatic routing
Compatible with industry-standard Arm development tools
