STM8S001J3M3TR 8-Bit STM8 Microcontroller MCU with 16MHz Clock Speed and 8 kB Flash Memory

STM8S001J3M3TR 8-Bit STM8 Microcontroller MCU with 16MHz Clock Speed and 8 kB Flash Memory
STM8S001J3M3TR 8-Bit STM8 Microcontroller MCU with 16MHz Clock Speed and 8 kB Flash Memory STM8S001J3M3TR 8-Bit STM8 Microcontroller MCU with 16MHz Clock Speed and 8 kB Flash Memory

Large Image :  STM8S001J3M3TR 8-Bit STM8 Microcontroller MCU with 16MHz Clock Speed and 8 kB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STM8S001J3M3TR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

STM8S001J3M3TR 8-Bit STM8 Microcontroller MCU with 16MHz Clock Speed and 8 kB Flash Memory

Description
Part Number: STM8S001J3M3TR Core:: STM8
Program Memory Size:: 8 KB Data RAM Size:: 1 KB
Maximum Clock Frequency:: 16 MHz ADC Resolution:: 10 Bit
Highlight:

8-Bit STM8 Microcontroller

,

16MHz STM8 Microcontroller

,

8 kB Flash Microcontroller MCU

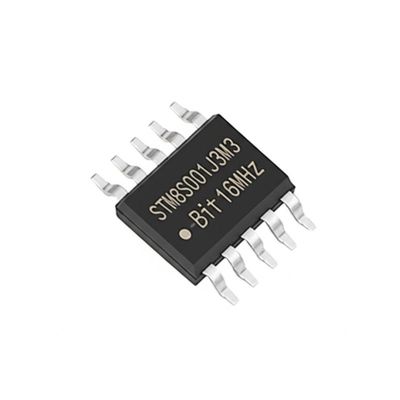

STM8S001J3M3TR Microcontroller MCU 8-Bit 16MHz STM8 Microcontroller IC 8-SOIC
Product Description
The STM8S001J3M3TR 8-bit microcontroller offers 8 Kbytes of Flash program memory with integrated true data EEPROM. Classified as a low-density device in the STM8S microcontroller family (RM0016), it delivers exceptional performance, robustness, and system cost reduction.
Key Specifications
Core Processor STM8
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, IrDA, LINbus, SmartCard, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 5
Program Memory Size 8KB (8K x 8)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 1K x 8
Voltage Supply (Vcc/Vdd) 2.95V ~ 5.5V
Data Converters A/D 3x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Key Features
  • Core: 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline, extended instruction set
  • Memories: 8-Kbyte Flash memory (20 years data retention at 55°C), 1 Kbyte RAM, 128-byte true data EEPROM (100k write/erase cycles)
  • Clock & Power Management: 2.95V to 5.5V operation, flexible clock control with 3 master clock sources, low-power modes
  • Timers: Advanced 16-bit control timer, general purpose timer, basic timer, watchdog timers
  • Communication: UART, SmartCard, IrDA, LIN master mode, SPI up to 8 Mbit/s, I2C up to 400 Kbit/s
  • ADC: 10-bit with up to 3 multiplexed channels, scan mode, and analog watchdog
  • I/O: Up to 5 I/Os including 4 high-sink outputs with robust design against current injection
Other Available Products
Part Number Package
MIC2133YML 32-VQFN
PIC18F26Q83-I/5N 28-VQFN
HV53011-E/KVX 59-TFBGA
PAC1953T-E/4MX 16-VQFN
PAC1952T-2E/J6CX 16-WLCSP
PAC1941T-2E/4MX 16-VQFN
PAC1942T-2E/4MX 16-VQFN
PAC1954T-E/J6CX 16-WLCSP
PAC1951T-2E/J6CX 16-WLCSP
PAC1942T-2E/J6CX 16-WLCSP
PAC1941T-2E/J6CX 16-WLCSP
PAC1943T-E/4MX 16-VQFN
PAC1942T-1E/J6CX 16-WLCSP
PAC1943T-E/J6CX 16-WLCSP
PAC1941T-1E/J6CX 16-WLCSP
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample orders and small orders. Sample cost varies according to your order or project requirements.
How to ship my order? Is it safe?
We use express shipping services including DHL, FedEx, UPS, TNT, and EMS. We can also use your preferred forwarder. All products are securely packaged to ensure safety during transit, and we take full responsibility for any product damage during shipping.
What about the lead time?
We can ship stock parts within 5 working days. For out-of-stock items, we will confirm the lead time based on your order quantity.
