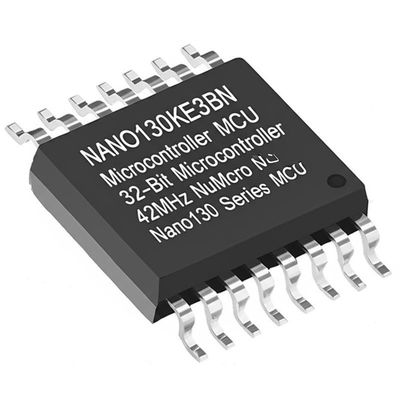

NANO130KE3BN 32-Bit Microcontroller MCU with 42 MHz ARM Cortex M0 Core 86 I/O and 16 kB RAM

NANO130KE3BN 32-Bit Microcontroller MCU with 42 MHz ARM Cortex M0 Core 86 I/O and 16 kB RAM
NANO130KE3BN 32-Bit Microcontroller MCU with 42 MHz ARM Cortex M0 Core 86 I/O and 16 kB RAM NANO130KE3BN 32-Bit Microcontroller MCU with 42 MHz ARM Cortex M0 Core 86 I/O and 16 kB RAM

Large Image :  NANO130KE3BN 32-Bit Microcontroller MCU with 42 MHz ARM Cortex M0 Core 86 I/O and 16 kB RAM

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NANO130KE3BN
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-128
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

NANO130KE3BN 32-Bit Microcontroller MCU with 42 MHz ARM Cortex M0 Core 86 I/O and 16 kB RAM

Description
Part Number: NANO130KE3BN Core: ARM Cortex M0
Maximum Clock Frequency: 42 MHz Number Of I/Os: 86 I/O
Data RAM Size: 16 KB Interface Type: I2C, SPI, UART, USB
Highlight:

42 MHz Microcontroller MCU

,

86 I/O 32-Bit Microcontroller

,

16 kB RAM NuMicro Nano130 Series MCU

NANO130KE3BN Microcontroller MCU 32-Bit Microcontroller 42MHz NuMicro Nano130 Series MCU
Product Description
The NANO130KE3BN is part of the NuMicro® Nano130 series featuring an ARM® Cortex®-M0 core operating at up to 42 MHz. It includes 32K/64K/128K bytes of embedded Flash, 8K/16K bytes of embedded SRAM, and 4K bytes of Flash loader memory for In-System Programming (ISP). This microcontroller integrates an LCD Controller (4x40 & 6x38 COM/SEG), USB 2.0 FS, Real Time Counter (RTC), 12-bit SAR ADC, 12-bit DAC, UART, SPI, I²C, I²S, PWM/Capture, ISO-7816-3, Watchdog Timer, Brown-out Detector, and supports fast wake-up via multiple interfaces. It also features 96-bit Unique ID and 128-bit Unique Customer ID.
Specifications
Series NuMicro™ Nano130
Core Processor ARM® Cortex®-M0
Core Size 32-Bit
Speed 42MHz
Connectivity EBI/EMI, I2C, SPI, UART/USART, USB
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 86
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Data Converters A/D 8x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 128-LQFP (14x14)
Package / Case 128-LQFP
Key Features
  • Core: Cortex®-M0 processor, Max frequency of 42 MHz, Operating voltage: 1.8V to 3.6V, Temperature range: -40℃ ~ 85℃
  • Ultra-Low Power Consumption: 200 μA/MHz (Normal), 75 μA/MHz (Idle), 2.5 μA (Power down, RTC on, RAM retention), 1 μA (Power down, RAM retention), Fast wake-up: less than 3.5 us
  • Memory: 128 KB of Flash Memory, 16 KB of SRAM, Configurable Data Flash, ISP (In-System Programming), ICP (In-Circuit Programming)
  • ADC: Up to 8 channels, 12-bit resolution, Up to 2 MSPS conversion rate, ±1℃ accurate temperature sensor
  • DAC: Two DACs, 12-bit resolution, Up to 400 KSPS conversion rate
  • PWM: Up to 8 channel PWM or 4 complementary paired PWM outputs, Period/duty trigger ADC function
  • LCD Controller: 4x40 & 6x38 COM/SEG LCD
  • Connectivity: USB 2.0 FS, Up to three SPIs (up to 32 MHz), Up to two I²Cs (up to 1 MHz), Up to five UARTs (two up to 1 Mbps), Up to three ISO-7816-3 for smart card application, One I²S Interface, 8/16 bits EBI interface
  • Clock Control: 4 to 24 MHz crystal oscillator, Internal 12 MHz (1% accuracy), Internal 10 kHz OSC for low power system operation
Applications
Wearable Devices, Portable Medical Devices, Portable GPS Watches, and more.
