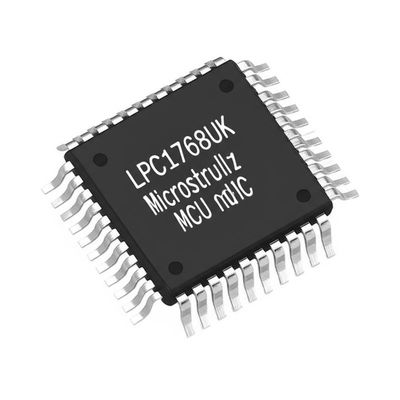

LPC1768UK 32-Bit Microcontroller MCU with 100MHz ARM Cortex M3 512 kB Flash Memory and 64 kB RAM

LPC1768UK 32-Bit Microcontroller MCU with 100MHz ARM Cortex M3 512 kB Flash Memory and 64 kB RAM
LPC1768UK 32-Bit Microcontroller MCU with 100MHz ARM Cortex M3 512 kB Flash Memory and 64 kB RAM LPC1768UK 32-Bit Microcontroller MCU with 100MHz ARM Cortex M3 512 kB Flash Memory and 64 kB RAM

Large Image :  LPC1768UK 32-Bit Microcontroller MCU with 100MHz ARM Cortex M3 512 kB Flash Memory and 64 kB RAM

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LPC1768UK
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WLCSP-100
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

LPC1768UK 32-Bit Microcontroller MCU with 100MHz ARM Cortex M3 512 kB Flash Memory and 64 kB RAM

Description
Part Number: LPC1768UK Core: ARM Cortex M3
Program Memory Size: 512 KB Maximum Clock Frequency: 100 MHz
Number Of I/Os: 70 I/O Data RAM Size: 64 KB
Highlight:

100MHz Microcontroller MCU

,

512 kB Flash Memory 32-Bit Microcontroller

,

64 kB RAM LPC1768UK

LPC1768UK Microcontroller MCU 100MHz Scalable Mainstream 32-Bit Microcontroller IC
Product Description
The LPC1768UK is a Scalable Mainstream 32-bit Microcontroller based on Arm® Cortex®-M3, designed for embedded applications with high integration and low power consumption at frequencies up to 100 MHz. It features 512 kB of flash memory, 64 kB of data memory, Ethernet MAC, USB Device/Host/OTG, 8-channel DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I²C, I²S, 8-channel 12-bit ADC, 10-bit DAC, motor control PWM, Quadrature Encoder interface, 4 general purpose timers, 6-output general purpose PWM, ultra-low power Real-Time Clock with separate battery supply, and up to 70 general purpose I/O pins.
Specifications
Core Processor ARM® Cortex®-M3
Core Size 32-Bit
Speed 100MHz
Connectivity CANbus, Ethernet, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT
Number of I/O 70
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 3.6V
Data Converters A/D 8x12b; D/A 1x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 100-WLCSP (5.07x5.07)
Package / Case 100-UFBGA, WLCSP
Features
  • Arm® Cortex-M3 processor, running at frequencies of up to 100 MHz
  • Arm Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
  • Up to 512 kB on-chip flash programming memory
  • Up to 64 kB On-chip SRAM
  • In-System Programming (ISP) and In-Application Programming (IAP)
  • Eight channel General Purpose DMA controller (GPDMA)
  • Ethernet MAC with RMII interface and dedicated DMA controller
  • USB 2.0 full-speed device/Host/OTG controller
  • Four UARTs with fractional baud rate generation, internal FIFO, and DMA support
  • CAN 2.0B controller with two channels
  • SPI controller with synchronous, serial, full duplex communication
  • Two SSP controllers with FIFO and multi-protocol capabilities
  • Three enhanced I²C bus interfaces
  • I²S (Inter-IC Sound) interface
  • 70 General Purpose I/O (GPIO) pins with configurable pull-up/down resistors
  • 12-bit/8-ch Analog/Digital Converter (ADC) with conversion rates up to 200 kHz
  • 10-bit Digital/Analog Converter (DAC) with dedicated conversion timer and DMA
Applications
  • Smart energy, building automation, industrial controls and networking
  • White goods, lighting, surveillance
  • Computer communications and peripherals
  • Alarm systems
  • Motor control
  • Displays, telematics, scanners and medical diagnostics
