R5F1056AASP 16-Bit RL78/G11 Microcontroller MCU with 24MHz Speed and 16 kB Flash Memory in LSSOP20 Package

R5F1056AASP 16-Bit RL78/G11 Microcontroller MCU with 24MHz Speed and 16 kB Flash Memory in LSSOP20 Package

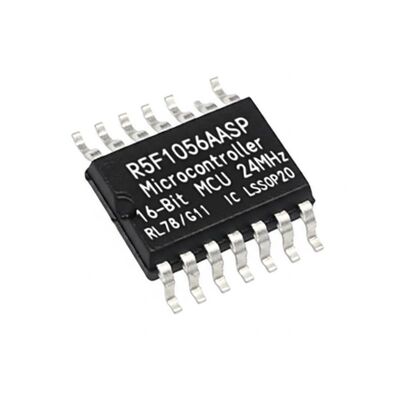

R5F1056AASP 16-Bit RL78/G11 Microcontroller MCU with 24MHz Speed and 16 kB Flash Memory in LSSOP20 Package R5F1056AASP 16-Bit RL78/G11 Microcontroller MCU with 24MHz Speed and 16 kB Flash Memory in LSSOP20 Package

Large Image :  R5F1056AASP 16-Bit RL78/G11 Microcontroller MCU with 24MHz Speed and 16 kB Flash Memory in LSSOP20 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: R5F1056AASP
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LSSOP-20
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

R5F1056AASP 16-Bit RL78/G11 Microcontroller MCU with 24MHz Speed and 16 kB Flash Memory in LSSOP20 Package

Description
Part Number: R5F1056AASP Series: RL78/G11
Program Memory Size: 16 KB Data RAM Size: 1.5 KB
Number Of I/Os: 17 I/O Data Bus Width: 16 Bit
Highlight:

16-Bit RL78/G11 Microcontroller

,

24MHz Microcontroller MCU

,

16 kB Flash Memory MCU

R5F1056AASP Microcontroller MCU 16-Bit MCU 24MHz RL78/G11 Microcontroller IC LSSOP20
Product Description
The R5F1056AASP is a 16-bit RL78/G11 microcontroller IC featuring small 20-pin packages with 16KB flash memory. It includes rich analog peripherals such as A/D converters, D/A converters, comparators, and PGA, configurable in various combinations. Designed for ultra-low power operation (100 µA @ 1 MHz) with fast 4µs wake-up time, this MCU is ideal for sensor applications, lighting/power sources, and small appliances.
Specifications
Series RL78/G11
Core Processor RL78
Core Size 16-Bit
Speed 24MHz
Connectivity CSI, I2C, UART/USART
Peripherals LVD, POR, WDT
Number of I/O 17
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
RAM Size 1.5K x 8
Voltage - Supply (Vcc/Vdd) 1.6V ~ 5.5V
Data Converters A/D 10x10b; D/A 2x8b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 20-LSSOP
Package / Case 20-LSSOP (0.173", 4.40mm Width)
Key Features
  • Ultra-low power consumption technology (VDD = 1.6 V to 5.5 V)
  • Multiple power modes: HALT, STOP, and SNOOZE
  • RL78 CPU core with CISC architecture and 3-stage pipeline
  • Minimum instruction execution time from 0.04167 µs (@ 24MHz) to 66.6 µs (@ 15 kHz)
  • Supports multiply/divide/multiply & accumulate instructions
  • 1 Mbytes address space with 1.5 Kbytes on-chip RAM
  • 16 Kbytes code flash memory with on-chip debug function
  • 2 Kbytes data flash memory with 1,000,000 rewrite cycles (typical)
