S912ZVL64F0VLFR 16-Bit 32MHz S12 MagniV Automotive Microcontroller MCU with 64 kB Flash Memory

S912ZVL64F0VLFR 16-Bit 32MHz S12 MagniV Automotive Microcontroller MCU with 64 kB Flash Memory
S912ZVL64F0VLFR 16-Bit 32MHz S12 MagniV Automotive Microcontroller MCU with 64 kB Flash Memory S912ZVL64F0VLFR 16-Bit 32MHz S12 MagniV Automotive Microcontroller MCU with 64 kB Flash Memory

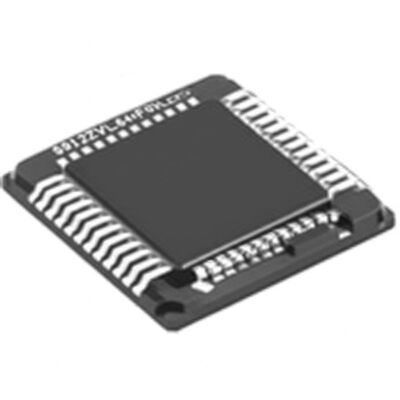

Large Image :  S912ZVL64F0VLFR 16-Bit 32MHz S12 MagniV Automotive Microcontroller MCU with 64 kB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S912ZVL64F0VLFR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-48
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

S912ZVL64F0VLFR 16-Bit 32MHz S12 MagniV Automotive Microcontroller MCU with 64 kB Flash Memory

Description
Part Number: S912ZVL64F0VLFR Core:: S12Z
Program Memory Size:: 64 KB Data RAM Size:: 8 KB
Maximum Clock Frequency:: 32 MHz ADC Resolution:: 12 Bit
Highlight:

16-Bit Microcontroller MCU

,

32MHz Automotive Microcontroller

,

64 kB Flash S12 MagniV Microcontroller

S912ZVL64F0VLFR Microcontroller MCU 16-Bit 32MHz S12 MagniV Automotive Microcontroller
The S912ZVL64F0VLFR is an automotive 16-bit microcontroller family utilizing 180nm NVM + UHV technology, enabling integration of 40V analog components. This family maintains compatibility with the established S12 portfolio while offering enhanced capabilities.
Technical Specifications
Core Processor S12Z
Core Size 16-Bit
Speed 32MHz
Connectivity CANbus, I2C, IrDA, LINbus, SCI, SPI, UART/USART
Peripherals LVD, POR, PWM, WDT
Number of I/O 34
Program Memory Size 64KB (64K x 8)
Program Memory Type FLASH
EEPROM Size 512 x 8
RAM Size 1K x 8
Voltage Supply (Vcc/Vdd) 5.5V ~ 18V
Data Converters A/D 10x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Key Features
  • S12Z CPU core with multiple flash memory options (128, 96, 64, 32, 16 or 8 KB) with ECC
  • EEPROM with ECC (2048, 1024, 128 byte)
  • On-chip SRAM with ECC (8192, 4096, 1024 or 512 byte)
  • Phase locked loop (IPLL) frequency multiplier with internal filter
  • 1 MHz internal RC oscillator with ±1.3% accuracy over rated temperature range
  • 4-20 MHz amplitude controlled pierce oscillator
  • Internal COP (watchdog) module
  • Analog-to-digital converter (ADC) with 10-bit or 12-bit resolution and up to 10 channels
  • PGA module with two input channels
  • One 8-bit 5V digital-to-analog converter (DAC)
  • One analog comparator (ACMP) with rail-to-rail inputs
  • MSCAN module (1 Mbit/s, CAN 2.0 A, B software compatible)
  • Serial peripheral interface (SPI) module
  • Serial communication interface (SCI) module with LIN physical layer transceiver
  • Additional SCI module (not connected to LIN physical layer)
  • On-chip LIN physical layer transceiver compliant with LIN 2.2 standard
  • 6-channel timer module (TIM0) and 2-channel timer module (TIM1)
  • Inter-IC (IIC) module
  • 8-channel Pulse Width Modulation module (PWM)
  • On-chip voltage regulator (VREG) for input supply and internal voltage regulation
  • Autonomous periodic interrupt (API) for cyclic wakeup from Stop mode
  • High current drive capability pins (25 mA to VSSX, 20 mA from VDDX)
  • High Voltage Input (HVI) capability
  • Supply voltage sense with low battery warning
  • On-chip temperature sensor with ADC measurement and high temperature warning
  • Up to 23 pins supporting keyboard wake-up interrupt (KWI)
