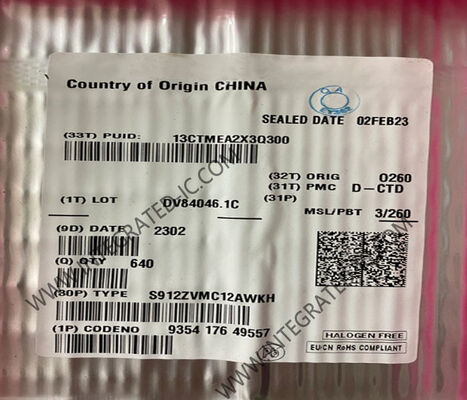

S912ZVMC12AWKH Microcontroller MCU
16-Bit S12 MagniV® mixed-signal microcontroller for automotive and industrial motor control applications.
Product Overview
The S912ZVMC12AWKH offers the smallest, efficient, and scalable 3-phase motor control solution for Brushless Direct Current (BLDC) motors, Permanent Magnet Synchronous Motors (PMSM), or Switched Reluctance Motor (SRM) control applications in industrial and automotive sectors.
This microcontroller integrates a 12V to 5V voltage regulator, LIN or CAN physical layer, and a Gate Driver Unit (GDU) to control six power MOSFETs.
Technical Specifications
| Series | S12 MagniV |
|---|
| Core Processor | S12Z |
|---|
| Core Size | 16-Bit |
|---|
| Speed | 50MHz |
|---|
| Connectivity | CANbus, SCI, SPI |
|---|
| Peripherals | DMA, POR, PWM, WDT |
|---|
| Number of I/O | 31 |
|---|
| Program Memory Size | 128KB (128K x 8) |
|---|
| Program Memory Type | FLASH |
|---|
| EEPROM Size | 512 x 8 |
|---|
| RAM Size | 8K x 8 |
|---|
| Voltage Supply | 3.5V ~ 40V |
|---|
| Data Converters | A/D 9x12b SAR |
|---|
| Oscillator Type | External, Internal |
|---|
| Operating Temperature | -40°C ~ 150°C (TA) |
|---|
| Mounting Type | Surface Mount |
|---|
| Supplier Device Package | 64-HLQFP (10x10) |
|---|
| Package / Case | 64-LQFP Exposed Pad |
|---|
Key Features
- Enhanced S12Z core at 50 MHz bus speed
- 16kB - 256kB Flash Memory (ECC)
- 128B - 1kB EEPROM (ECC)
- 2kB - 32kB RAM (ECC)
- 6-ch PMF 15bit PWM for motor control with dead time, fault management
- Dual 12-bit analog to digital converter (ADC)
- Programmable trigger unit (PTU) to synchronize ADC conversions
- 3.5 to 20-volt operating range
- CAN physical layer (Only in S12ZVMC256)
- LIN physical layer (Only in S12ZVML128, S12ZVML64, S12ZVML32 and S12ZVML31)
- Gate drive unit (GDU) for six power MOSFETs
- Up to 2 Op-Amp for current measurement/sensing
Applications
Automotive:
- Heating Ventilation and Air Conditioning (HVAC)
Consumer:
- Air Conditioning (AC)
- Hearables
- Major Home Appliances
- Robotic Appliance
- Small and Medium Appliances
Industrial:
- 3-Phase AC Induction Motor
- Brushless DC Motor (BLDC) Control
- Motion Control and Robotics
- Motor Drives
- Permanent Magnet Synchronous Motor (PMSM)
- Smart Power Socket
- Smart Watch and Wristband
- Vital Signs Monitors
