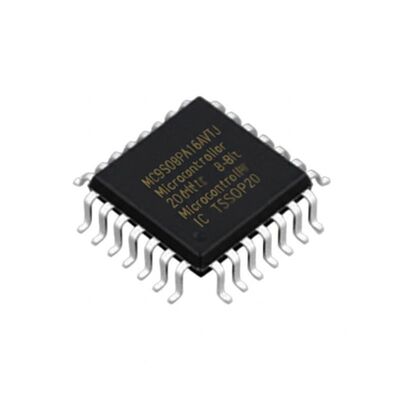

MC9S08PA16AVTJ 20MHz 8-Bit S08 Microcontroller MCU with 16KB Flash and 18 I/O in TSSOP20 Package

MC9S08PA16AVTJ 20MHz 8-Bit S08 Microcontroller MCU with 16KB Flash and 18 I/O in TSSOP20 Package
MC9S08PA16AVTJ 20MHz 8-Bit S08 Microcontroller MCU with 16KB Flash and 18 I/O in TSSOP20 Package MC9S08PA16AVTJ 20MHz 8-Bit S08 Microcontroller MCU with 16KB Flash and 18 I/O in TSSOP20 Package

Large Image :  MC9S08PA16AVTJ 20MHz 8-Bit S08 Microcontroller MCU with 16KB Flash and 18 I/O in TSSOP20 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MC9S08PA16AVTJ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TSSOP-20
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MC9S08PA16AVTJ 20MHz 8-Bit S08 Microcontroller MCU with 16KB Flash and 18 I/O in TSSOP20 Package

Description
Part Number: MC9S08PA16AVTJ Core: S08
Program Memory Size: 16 KB Maximum Clock Frequency: 20 MHz
Number Of I/Os: 18 I/O Analog Supply Voltage: - 600 MV To 6.3 V
Highlight:

20MHz Microcontroller MCU

,

16KB Flash S08 Microcontroller

,

18 I/O 8-Bit Microcontroller

MC9S08PA16AVTJ Microcontroller MCU
8-bit 5V full-featured microcontroller IC with EEPROM, integrating key features including EEPROM, ADC, analog comparator, and motor control flex timer to simplify design and reduce system costs.
Technical Specifications
Series S08
Core Processor S08
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, LINbus, SPI, UART/USART
Peripherals LVD, POR, PWM, WDT
Number of I/O 18
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
EEPROM Size 256 x 8
RAM Size 2K x 8
Voltage Supply 2.7V ~ 5.5V
Data Converters A/D 12x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Supplier Device Package 20-TSSOP
Package / Case 20-TSSOP (0.173", 4.40mm Width)
Key Features
8-Bit S08 Central Processor Unit (CPU)
  • Up to 20 MHz bus at 2.7 V to 5.5 V across operating temperature range
  • Supports up to 40 interrupt/reset sources
  • Supports up to four-level nested interrupt
On-Chip Memory
  • Up to 16 KB flash read/program/erase over full operating voltage and temperature
  • Up to 256 byte EEPROM with 2-byte erase sector
  • Program and erase while executing flash
  • Up to 2048 byte random-access memory (RAM)
  • Flash and RAM access protection
Power Management
  • One low-power stop mode and reduced power wait mode
  • Peripheral clock enable register for disabling clocks to unused modules
  • Allows clocks to remain enabled to specific peripherals in stop3 mode
Clock System
  • Oscillator (XOSC) - loop-controlled Pierce oscillator supporting 31.25 kHz to 39.0625 kHz or 4 MHz to 20 MHz
  • Internal clock source (ICS) with frequency-locked-loop (FLL)
  • Precision trimming allowing 1% deviation (0°C to 70°C) and 2% deviation (full operating temperature)
Input/Output Capabilities
  • Up to 37 GPIOs including one output-only pin
  • One 8-bit keyboard interrupt module (KBI)
  • Two true open-drain output pins
  • Four ultra-high current sink pins supporting 20 mA source/sink current
Target Applications
Automotive
  • Electric Pumps
  • Heating Ventilation and Air Conditioning (HVAC)
Consumer
  • Air Conditioning (AC)
  • Major Home Appliances
  • Small and Medium Appliances
Industrial
  • 3-Phase AC Induction Motor
  • Brushless DC Motor (BLDC) Control
  • Circuit Breaker
  • Motion Control and Robotics
  • Permanent Magnet Synchronous Motor (PMSM)
