S9S08SG4E2MTJ 40MHz 8-Bit S08 Microcontroller MCU in TSSOP20 Package

S9S08SG4E2MTJ 40MHz 8-Bit S08 Microcontroller MCU in TSSOP20 Package

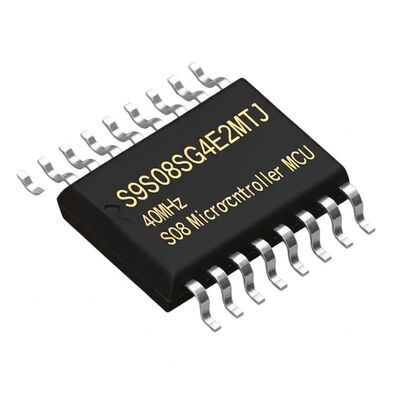

S9S08SG4E2MTJ 40MHz 8-Bit S08 Microcontroller MCU in TSSOP20 Package S9S08SG4E2MTJ 40MHz 8-Bit S08 Microcontroller MCU in TSSOP20 Package

Large Image :  S9S08SG4E2MTJ 40MHz 8-Bit S08 Microcontroller MCU in TSSOP20 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S9S08SG4E2MTJ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TSSOP-20
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

S9S08SG4E2MTJ 40MHz 8-Bit S08 Microcontroller MCU in TSSOP20 Package

Description
Part Number: S9S08SG4E2MTJ Core: S08
ADC Resolution: 10 Bit Number Of I/Os: 16 I/O
Operating Supply Voltage: 2.7 V To 5.5 V Operating Temperature: -40°C ~ 125°C (TA)
Highlight:

40MHz S08 Microcontroller

,

8-Bit Microcontroller MCU

,

TSSOP20 Microcontroller MCU

S9S08SG4E2MTJ Microcontroller MCU
40MHz 8-Bit S08 Microcontroller IC in TSSOP20 package designed for LIN follower, general market, high-temperature (up to 150°C ambient) and space-constrained applications.
Technical Specifications
Parameter Specification
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity I2C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 16
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
RAM Size 256 x 8
Voltage Supply 2.7V ~ 5.5V
Data Converters A/D 12x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 20-TSSOP (0.173", 4.40mm Width)
Key Features
8-Bit HCS08 Central Processor Unit (CPU)
  • 40 MHz HCS08 CPU (central processor unit)
  • 36 MHz HCS08 CPU for temperatures greater than 125°C
  • HC08 instruction set with added BGND instruction
  • Support for up to 32 interrupt/reset sources
On-Chip Memory
  • Flash read/program/erase over full operating voltage and temperature
  • Random-access memory (RAM)
Power-Saving Modes
  • Two very low power stop modes
  • Reduced power wait mode
  • Very low power real time interrupt for use in run, wait, and stop
Input/Output
  • 16 general purpose I/O pins (GPIOs)
  • 8 interrupt pins with selectable polarity
  • Ganged output option for PTB[5:2] and PTC[3:0]; allows single write to change state of multiple pins
  • Hysteresis and configurable pull up device on all input pins; Configurable slew rate and drive strength on all output pins
Target Applications
Automotive
  • Braking and Stability Control
  • Electric Power Steering (EPS)
  • Heating Ventilation and Air Conditioning (HVAC)
  • Hybrid Electric Vehicle (HEV) Applications
Consumer
  • Air Conditioning (AC)
  • Hearables
  • Major Home Appliances
  • Robotic Appliance
  • Small and Medium Appliances
Industrial
  • Automatic Vehicle Identification
  • Continuous Glucose Monitoring (CGM)
  • Industrial HMI
  • Patient Monitor
  • Smart Power Socket
  • Smart Watch and Wristband
  • Transport Ticketing
  • Vital Signs Monitors
