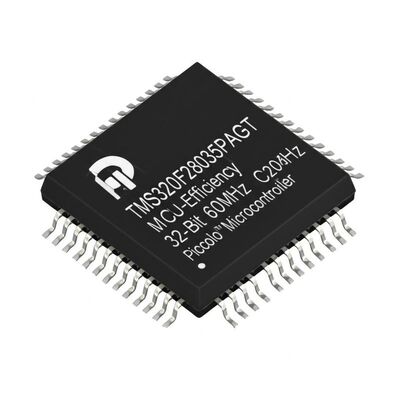

TMS320F28035PAGT Microcontroller MCU 32-Bit 60MHz C28x Piccolo with 128 kB Flash Memory

TMS320F28035PAGT Microcontroller MCU 32-Bit 60MHz C28x Piccolo with 128 kB Flash Memory
TMS320F28035PAGT Microcontroller MCU 32-Bit 60MHz C28x Piccolo with 128 kB Flash Memory TMS320F28035PAGT Microcontroller MCU 32-Bit 60MHz C28x Piccolo with 128 kB Flash Memory

Large Image :  TMS320F28035PAGT Microcontroller MCU 32-Bit 60MHz C28x Piccolo with 128 kB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TMS320F28035PAGT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TQFP-64
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

TMS320F28035PAGT Microcontroller MCU 32-Bit 60MHz C28x Piccolo with 128 kB Flash Memory

Description
Part Number: TMS320F28035PAGT Core:: C28x
Program Memory Size:: 128 KB Data RAM Size:: 20 KB
Data Bus Width:: 32 Bit ADC Resolution:: 12 Bit
Highlight:

32-Bit Microcontroller MCU

,

60MHz C28x Piccolo Microcontroller

,

128 kB Flash TMS320F28035PAGT

TMS320F28035PAGT Microcontroller MCU
High-Efficiency 32-Bit 60MHz C28x Piccolo™ Microcontroller optimized for real-time control applications.
Product Overview
TMS320F28035PAGT C2000™ 32-bit microcontrollers deliver exceptional processing, sensing, and actuation capabilities to enhance closed-loop performance in demanding real-time control applications including industrial motor drives, solar inverters, digital power systems, electric vehicles, motor control, and signal processing.
Technical Specifications
Parameter Specification
Core Processor C28x
Core Size 32-Bit
Speed 60MHz
Connectivity CANbus, I2C, LINbus, SCI, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 33
Program Memory Size 128KB (64K x 16)
Program Memory Type FLASH
RAM Size 10K x 16
Voltage Supply 1.71V ~ 1.995V
Data Converters A/D 14x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Key Features
  • High-efficiency 32-bit CPU (TMS320C28x) with 60MHz operation
  • 16*16 and 32*32 MAC operations with dual MAC capability
  • Harvard bus architecture with atomic operations
  • Programmable Control Law Accelerator (CLA) with 32-bit floating-point math
  • JTAG boundary scan support (IEEE 1149.1-1990)
  • Single 3.3V supply with low power consumption
  • Up to 45 individually programmable GPIO pins with input filtering
  • Comprehensive serial port peripherals including CAN, I2C, LIN, SPI, and UART
  • Enhanced control peripherals for PWM, capture, encoder, and ADC functions
  • Advanced emulation features for real-time debugging
Applications
  • Air conditioner outdoor units and door operator drive control
  • DC/DC converters, inverters, and motor control systems
  • Electric vehicle charging stations and wireless charging modules
  • Energy storage power conversion systems (PCS)
  • Solar power optimizers and micro inverters
  • Industrial AC drives and servo drive power stages
  • Three-phase UPS systems and power supply units
  • Automated sorting equipment and textile machinery
Related Components in Stock
Part Number Package
SDINBDV4-128G BGA
SDINBDV4-256G
SDINBDG4-64G-ZA2 BGA
SDINBDA6-32G-XA1T BGA
SDINBDA6-64G-ZA1T BGA
SDINBDG4-64G-ZAT2 BGA
SDINDDH6-16G-XI BGA
SDINDDH6-256G-XAT BGA
SDINDDH6-64G-ZA BGA
SDINBDV4-64G-P BGA
Frequently Asked Questions
Are your products original?
Yes, all products are original and sourced directly from authorized suppliers.
Which certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity orders or samples?
Yes, we support sample orders and small quantities. Sample costs vary based on your specific requirements.
How do you ship orders and ensure safety?
We use major express carriers including DHL, FedEx, UPS, TNT, and EMS. All products are professionally packaged to ensure safe delivery.
What is your lead time?
Stock parts ship within 5 working days. For non-stock items, we'll confirm lead time based on your order quantity.
