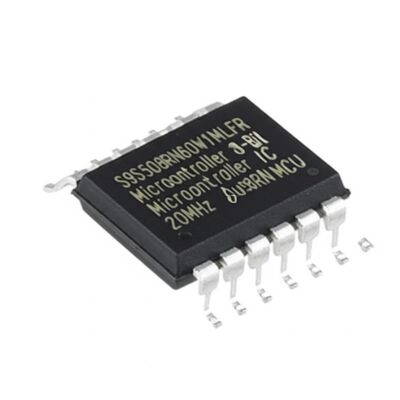

S9S08RN60W1MLFR Automotive 8-Bit S08 Microcontroller MCU with 20MHz Speed and 60KB Flash Memory

S9S08RN60W1MLFR Automotive 8-Bit S08 Microcontroller MCU with 20MHz Speed and 60KB Flash Memory
S9S08RN60W1MLFR Automotive 8-Bit S08 Microcontroller MCU with 20MHz Speed and 60KB Flash Memory S9S08RN60W1MLFR Automotive 8-Bit S08 Microcontroller MCU with 20MHz Speed and 60KB Flash Memory

Large Image :  S9S08RN60W1MLFR Automotive 8-Bit S08 Microcontroller MCU with 20MHz Speed and 60KB Flash Memory

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: S9S08RN60W1MLFR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-48
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

S9S08RN60W1MLFR Automotive 8-Bit S08 Microcontroller MCU with 20MHz Speed and 60KB Flash Memory

Description
Part Number: S9S08RN60W1MLFR Core: S08
Program Memory Size: 60 KB Data RAM Size: 4 KB
Maximum Clock Frequency: 20 MHz Number Of I/Os: 39 I/O
Highlight:

Automotive-Grade Microcontroller MCU

,

20MHz 8-Bit S08 Microcontroller

,

60KB Flash Memory S08RN MCU

S9S08RN60W1MLFR Microcontroller MCU
8-Bit S08 Microcontroller IC 20MHz Automotive S08RN MCU
Product Overview
S9S08RN60W1MLFR is an automotive-grade S08RN series 8-bit microcontroller featuring high scalability and TSI functionality, suitable for body electronics microcontrollers.
Technical Specifications
Parameter Specification
Core Processor S08
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, LINbus, SPI, UART/USART
Peripherals LVD, POR, PWM, WDT
Number of I/O 39
Program Memory Size 60KB (60K x 8)
Program Memory Type FLASH
EEPROM Size 256 x 8
RAM Size 4K x 8
Voltage Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 16x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package 48-LQFP (7x7)
Package / Case 48-LQFP
Key Features
  • 8-Bit S08 central processor unit (CPU)
  • Up to 20 MHz bus at 2.7 V to 5.5 V across temperature range of -40 °C to 125 °C
  • Supporting up to 40 interrupt/reset sources
  • Supporting up to four-level nested interrupt
  • On-chip memory including up to 60 KB flash, 256 byte EEPROM with ECC, and 4096 byte RAM
  • Flash and RAM access protection
  • Up to 55 GPIOs including one output-only pin
  • Two 8-bit keyboard interrupt modules (KBI)
  • Two true open-drain output pins
  • Eight ultra-high current sink pins supporting 20 mA source/sink current
Applications
  • Automotive
  • Automotive Advanced Exterior Lighting
  • Electric Pumps
  • Heating Ventilation and Air Conditioning (HVAC)
  • Service-Oriented Gateway
