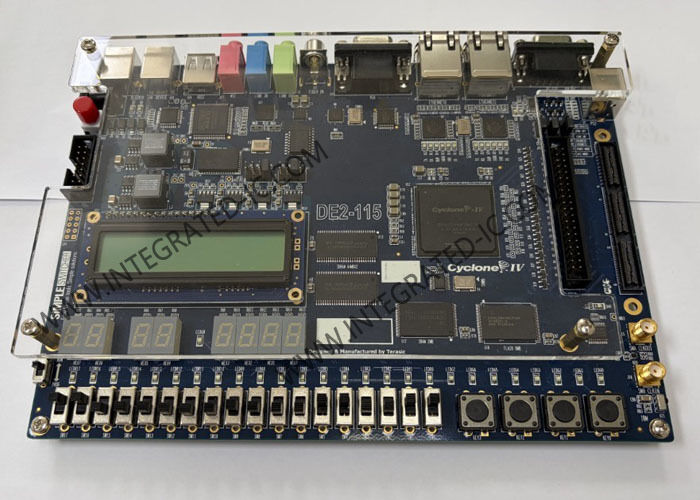

DE2-115 Embedded Solutions EP4CE115 Cyclone IV E FPGA Development And Education Kit
The DE2-115 FPGA Development and Education Kit features the Cyclone IV E device, designed to meet the growing demand for versatile low-cost solutions in mobile video, voice, data access, and high-quality imaging applications. This platform delivers an optimal balance of cost efficiency, power consumption, and comprehensive logic, memory, and DSP capabilities.
FPGA Core Specifications
Equipped with the Cyclone EP4CE115 device, the DE2-115 offers 114,480 logic elements (LEs) - the largest available in the Cyclone IV E series - along with up to 3.9 Mbits of RAM and 266 multipliers. This configuration provides superior functionality and reduced power consumption compared to previous generation Cyclone devices.
Key Features
FPGA Device
- Cyclone® IV EP4CE115 FPGA
- 114,480 logic elements (LEs)
- 3,888 Kbits embedded memory
- 266 embedded 18 x 18 multipliers
- 4 general-purpose PLLs
- 528 user I/Os
Configuration and Programming
- EPCS64 serial configuration device
- On-board USB-Blaster circuitry
- JTAG and AS mode configuration support
Memory Resources
- 128MB (32Mx32bit) SDRAM
- 2MB (1Mx16) SRAM
- 8MB (4Mx16) Flash with 8-bit mode
- 32Kbit EEPROM
User Interface
- 18 switches and 4 push-buttons
- 18 red and 9 green LEDs
- Eight 7-segment displays
Audio and Display
- 24-bit encoder/decoder (CODEC)
- Line-in, line-out, and microphone-in jacks
- 16x2 LCD module
Connectivity and Expansion
- Two Gigabit Ethernet ports with 10/100/1000 support
- 172-pin High Speed Mezzanine Card (HSMC)
- USB Type A and B connectors (USB 2.0 compliant)
- 40-pin expansion port
- VGA-out connector with high-speed triple DACs
- DB-9 serial connector (RS232 with flow control)
- PS/2 connector for mouse or keyboard
- SD card socket with SPI and 4-bit SD mode
Additional Features
- Three 50MHz oscillator clock inputs
- SMA connectors for external clock input/output
- Infrared receiver module with remote control
- TV decoder (NTSC/PAL/SECAM) with TV-in connector
- Desktop DC input with switching and step-down regulators
Package Contents
Altera DE2-115 Board, Altera Complete Design Suite DVD for Windows, DE2-115 System CD, Power DC Adapter 12V/2A, USB Programming Cable, Two 1-pin Headers, Two Wire Strips (black and red), Six Silicon Footstands, Remote Controller
