MSP430F2234IDAR 16-Bit Microcontroller MCU with 16MHz Speed and 8KB Flash Memory

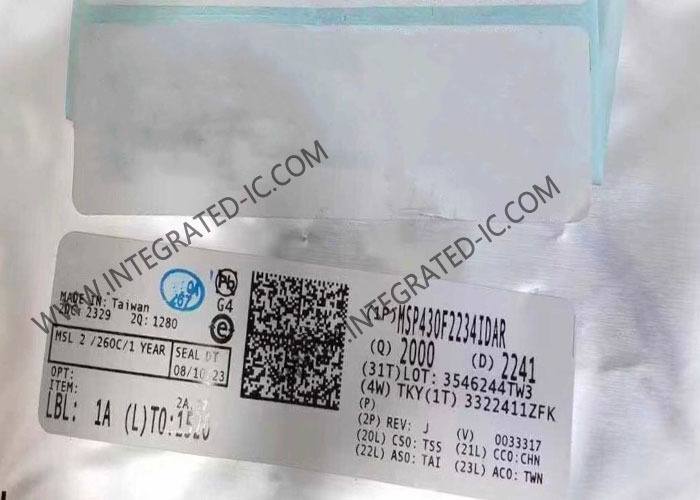

Large Image : MSP430F2234IDAR 16-Bit Microcontroller MCU with 16MHz Speed and 8KB Flash Memory

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSP430F2234IDAR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TSSOP-38
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

MSP430F2234IDAR 16-Bit Microcontroller MCU with 16MHz Speed and 8KB Flash Memory

Description

Part Number:	MSP430F2234IDAR	Core::	MSP430
Program Memory Size::	8 KB	Data RAM Size::	512 B
Maximum Clock Frequency::	16 MHz	ADC Resolution::	10 Bit
Highlight:	16-Bit Microcontroller MCU , 16MHz MSP430F2234IDAR , 8KB Flash Microcontroller

MSP430F2234IDAR Microcontroller MCU 16-Bit 16MHz 8KB Flash Microcontroller TSSOP-38

The MSP430F2234IDAR is an ultra-low-power microcontroller featuring a powerful 16-bit RISC CPU optimized for extended battery life in portable measurement applications. With five low-power modes and wake-up from standby in less than 1 µs, this device delivers maximum efficiency for demanding applications.

Technical Specifications

Core Processor	MSP430 CPU16
Core Size	16-Bit
Speed	16MHz
Connectivity	I2C, IrDA, LINbus, SCI, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	32
Program Memory Size	8KB (8K x 8 + 256B)
Program Memory Type	FLASH
RAM Size	512 x 8
Voltage Supply	1.8V ~ 3.6V
Data Converters	A/D 12x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)

Key Features

Low Supply Voltage Range: 1.8 V to 3.6 V
Ultra-Low Power Consumption: Active Mode: 270 µA at 1 MHz, 2.2 V; Standby Mode: 0.7 µA; Off Mode (RAM Retention): 0.1 µA
Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
Basic Clock Module Configurations with Internal Frequencies up to 16 MHz
16-Bit Timer_A and Timer_B with Three Capture/Compare Registers
Universal Serial Communication Interface with Enhanced UART, IrDA, SPI, and I2C
10-Bit 200-ksps Analog-to-Digital Converter with Internal Reference
Two Configurable Operational Amplifiers
Brownout Detector and Serial Onboard Programming
Bootstrap Loader and On-Chip Emulation Module
