PIC16F1718T-I/ML Microcontroller MCU 32MHz 8-Bit with 28 kB Flash Memory and Extreme Low Power (XLP)

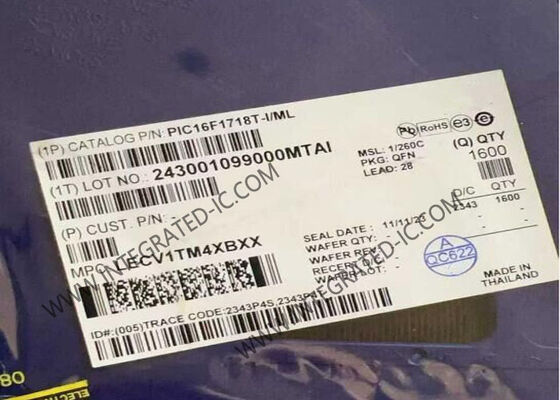

Large Image : PIC16F1718T-I/ML Microcontroller MCU 32MHz 8-Bit with 28 kB Flash Memory and Extreme Low Power (XLP)

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	PIC16F1718T-I/ML

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VQFN-28
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

PIC16F1718T-I/ML Microcontroller MCU 32MHz 8-Bit with 28 kB Flash Memory and Extreme Low Power (XLP)

Description

Part Number:	PIC16F1718T-I/ML	Series:	PIC® XLP™ 16F
Program Memory Size:	28 KB	Data RAM Size:	2 KB
ADC Resolution:	10 Bit	Number Of I/Os:	25 I/O
Highlight:	32MHz Microcontroller MCU , 28 kB Flash Memory PIC16F1718T-I/ML , Extreme Low Power (XLP) 8-Bit Microcontroller

PIC16F1718T-I/ML Microcontroller MCU

32MHz 8-Bit PIC XLP 16F Microcontroller IC VQFN28

Product Overview

The PIC16F1718T-I/ML is a PIC® XLP™ 16F Series 8-Bit Microcontroller IC that combines intelligent analog integration with low cost and extreme low power (XLP) technology, making it ideal for various general purpose applications. This microcontroller features on-chip Op Amps, Core Independent Peripherals (CLC, COG, NCO and Zero Cross Detect) and Peripheral Pin Select, providing enhanced design flexibility.

Technical Specifications

Core Processor	PIC
Core Size	8-Bit
Speed	32MHz
Connectivity	I2C, LINbus, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	24
Program Memory Size	28KB (16K x 14)
Program Memory Type	FLASH
RAM Size	2K x 8
Voltage Supply (Vcc/Vdd)	2.3V ~ 5.5V
Data Converters	A/D 17x10b; D/A 1x5b, 1x8b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	28-QFN (6x6)
Package / Case	28-VQFN Exposed Pad

Key Features

Core Features

C Compiler Optimized RISC Architecture
Only 49 Instructions
Operating Speed:
- 0-32 MHz clock input
- 125 ns minimum instruction cycle
Interrupt Capability
16-Level Deep Hardware Stack
Up to Four 8-Bit Timers
One 16-Bit Timer
Power-on Reset (POR)
Power-up Timer (PWRT)
Low-Power Brown-out Reset (LPBOR)
Programmable Watchdog Timer (WDT) up to 256s
Programmable Code Protection

Memory

Up to 16 Kwords Flash Program Memory
Up to 2048 Bytes Data SRAM Memory
Direct, Indirect and Relative Addressing modes
High-Endurance Flash (HEF):
- 128B of nonvolatile data storage
- 100K Erase/Write cycles

Operating Characteristics

Operating Voltage Range:
- 1.8V to 3.6V (PIC16LF1717/8/9)
- 2.3V to 5.5V (PIC16F1717/8/9)
Temperature Range:
- Industrial: -40°C to 85°C
- Extended: -40°C to 125°C

eXtreme Low-Power (XLP) Features

Sleep mode: 50 nA @ 1.8V, typical
Watchdog Timer: 500 nA @ 1.8V, typical
Secondary Oscillator: 500 nA @ 32 kHz
Operating Current:
- 8 uA @ 32 kHz, 1.8V, typical
- 32 uA/MHz @ 1.8V, typical

Clocking Structure

16 MHz Internal Oscillator Block:
- ±1% at calibration
- Selectable frequency range from 0 to 32 MHz
31 kHz Low-Power Internal Oscillator
External Oscillator Block with:
- Three crystal/resonator modes up to 20 MHz
- Two external clock modes up to 20 MHz
Fail-Safe Clock Monitor
Two-Speed Oscillator Start-up
Oscillator Start-up Timer (OST)
