RK3228A Microcontroller MCU 1.2GHz Quad-core ARM Cortex-A7 Application Processor BGA316

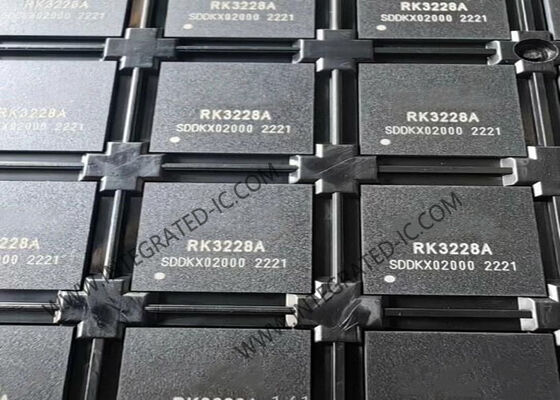

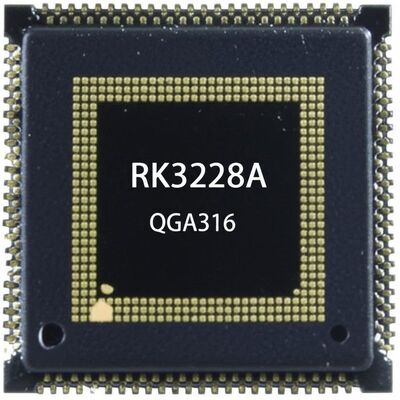

Large Image : RK3228A Microcontroller MCU 1.2GHz Quad-core ARM Cortex-A7 Application Processor BGA316

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	RK3228A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	BGA-316
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

RK3228A Microcontroller MCU 1.2GHz Quad-core ARM Cortex-A7 Application Processor BGA316

Description

Part Number:	RK3228A	Core:	Quad-core ARM® Cortex™-A7 Up To 1.2GHz
Flash:	8GB FLASH	RAM:	1GB DDR
Package:	BGA316	Appliactions:	Smart TV-Box
Highlight:	Quad-core ARM Cortex-A7 Microcontroller MCU , 1.2GHz Application Processor , BGA316 RK3228A

RK3228A Microcontroller MCU 1.2GHz Quad-Core ARM Cortex-A7 Application Processor BGA316

The RK3228A is a high-performance quad-core application processor specifically designed for smart TV boxes. This highly integrated and cost-efficient SOC delivers exceptional 4K H.265/H.264 decoding capabilities for advanced television applications.

Product Overview

Featuring quad-core Cortex-A7 architecture with separate Neon and FPU coprocessors and shared 256KB L2 cache, the RK3228A provides robust processing power. The penta-core GPU configuration includes one geometry processor, dual pixel processors, and dual-core 2D GPU engine, ensuring smooth high-resolution display performance and support for mainstream gaming applications. Multiple high-performance interfaces offer flexible solution options, including multi-pipe display with HDMI 2.0 and integrated TV encoder for secure boot functionality. The 32-bit DDR3/LPDDR3 memory interface delivers high bandwidth for demanding applications.

Technical Specifications

Core: Quad-core ARM® Cortex™-A7 up to 1.2GHz
RAM: 1GB DDR
Flash: 8GB FLASH
Package: BGA316
Type: High Performance Quad-Core Application Processor
Applications: Smart TV-Box

Key Features

Microprocessor

Quad-core ARM Cortex-A7MP Core processor for high-performance, low-power applications
Full ARM architecture v7-A instruction set implementation
ARM Neon Advanced SIMD support for accelerated media and signal processing
Separately integrated Neon and FPU per CPU
32KB/32KB L1 I-Cache/D-Cache per CPU
Unified 256KB L2 Cache

Memory Organization

Internal on-chip memory including BootRom and Internal SRAM
External off-chip memory support for DDR3/DDR3L/LPDDR2/LPDDR3
Async/Toggle/SyncNand Flash support (including LBA Nand)

Internal Memory

Internal BootRom (20KB)
System boot support from multiple devices: 8bits Async/Toggle Nand Flash, SPI interface, eMMC interface, SDMMC interface
System code download via USB OTG interface
Internal SRAM (36KB)

Temperature Sensor (TS-ADC)

10-bit SAR ADC with up to 50KS/s sampling rate
0~80℃ temperature range with 5℃ resolution

eFuse

Two high-density electrical Fuse configurations: 256bits (32x8) / 1024bits (32x32)
Support for standby mode
Inactive mode support with VP at 0V or Floating

Package Type

BGA316 package: 14mm x 14mm body, 0.3mm ball size, 0.65mm ball pitch
