ATSAME70Q21A Microcontroller MCU 32-Bit ARM Cortex-M7 MCU with 300MHz and 114 I/O

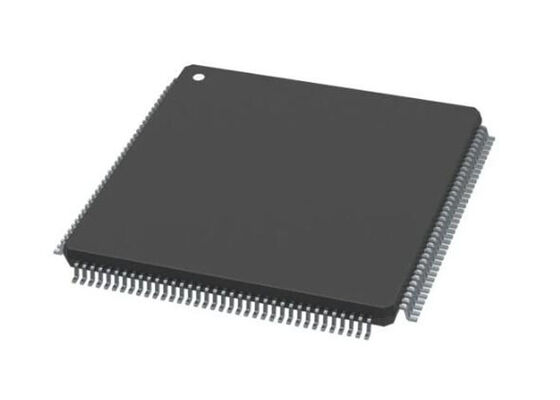

Large Image : ATSAME70Q21A Microcontroller MCU 32-Bit ARM Cortex-M7 MCU with 300MHz and 114 I/O

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ATSAME70Q21A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	LQFP-144
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ATSAME70Q21A Microcontroller MCU 32-Bit ARM Cortex-M7 MCU with 300MHz and 114 I/O

Description

Part Number:	ATSAME70Q21A	Core:	ARM Cortex M7
Data Bus Width:	32 Bit	Number Of I/Os:	114 I/O
Data RAM Size:	384 KB	Maximum Clock Frequency:	300 MHz
Highlight:	300MHz Microcontroller MCU , 32-Bit ARM Cortex-M7 MCU , 114 I/O ATSAME70Q21A

ATSAME70Q21A Microcontroller MCU

32-Bit SAME70 Microcontroller IC with 300MHz ARM Cortex-M7 MCU

Product Overview

The ATSAME70Q21A is a high-performance 32-bit ARM Cortex-M7 microcontroller featuring a Floating Point Unit (FPU). Operating at up to 300MHz, it offers up to 2048 Kbytes of Flash, up to 384 Kbytes of multi-port SRAM, and configurable Instruction and Data Tightly Coupled Memories to leverage the advanced DSP capabilities of the core.

Key Specifications

Series	SAM E70
Core Processor	ARM® Cortex®-M7
Core Size	32-Bit
Speed	300MHz
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O	114
Program Memory Size	2MB (2M x 8)
Program Memory Type	FLASH
RAM Size	384K x 8
Voltage Supply	1.62V ~ 3.6V
Data Converters	A/D 24x12b; D/A 2x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	144-LQFP (20x20)
Package / Case	144-LQFP

Advanced Features

Core: Arm® Cortex®-M7 running at up to 300 MHz with 16 Kbytes of I-Cache and 16 Kbytes of D-Cache with Error Code Correction (ECC)
Processing: Single-precision and double-precision HW Floating Point Unit (FPU) with DSP Instructions and Thumb®-2 Instruction Set
Memory Protection: Memory Protection Unit (MPU) with 16 zones
Debugging: Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)
Memories: Up to 2048 Kbytes embedded Flash with unique identifier, up to 384 Kbytes embedded Multi-port SRAM, and Tightly Coupled Memory (TCM)
Boot Support: 16 Kbytes ROM with embedded Bootloader routines (UART0, USB) and IAP routines
Memory Control: 16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR and NAND Flash with on-the-fly scrambling
I/O Capabilities: Up to 114 I/O lines with external interrupt capability, debouncing, glitch filtering and On-die Series Resistor Termination
Voltage Ranges: Single supply voltage from 3.0V to 3.6V for Qualification AEC - Q100 Grade 2 Devices, and 1.7V to 3.6V for Industrial Temperature Devices
Packaging: LQFP144, 144-lead LQFP, 20x20 mm, pitch 0.5 mm

Connectivity & Networking

The ATSAME70Q21A features multiple networking and connectivity peripherals, including CAN-FD interface and one 10/100Mbps Ethernet MAC with specific hardware support for Audio Video Bridging (AVB). Additional communication interfaces include HS USB Host and Device, HS SDCard/SDIO/MMC interface, USARTs, SPIs and multiple TWIs.

Analog Features

Advanced analog capabilities include dual 2Msps 12-bit ADCs with analog front end offering offset and gain error correction, and 2Msps 12-bit DAC for precision measurement and control applications.

Frequently Asked Questions

Are your products original?

Yes, all products are original, new original import is our purpose.

Which Certificates do you have?

We are ISO 9001:2015 Certified Company and member of ERAI.

Can you support small quantity order or sample? Is the sample free?

Yes, we support sample orders and small quantities. Sample cost varies according to your order or project requirements.

How to ship my order? Is it safe?

We use express carriers such as DHL, FedEx, UPS, TNT, and EMS. We can also use your suggested forwarder. Products are carefully packaged to ensure safety, and we take responsibility for any damage to your order.

What about the lead time?

We can ship stock parts within 5 working days. For items not in stock, we will confirm the lead time based on your order quantity.

Note: Additional electronic components are available in stock. Please contact us for specific part number availability and pricing.
