SPD1178API Microcontroller MCU System-On-Chip Controller with 200MHz CPU Clock in QFN64 Package and 8~60V Pre-driver

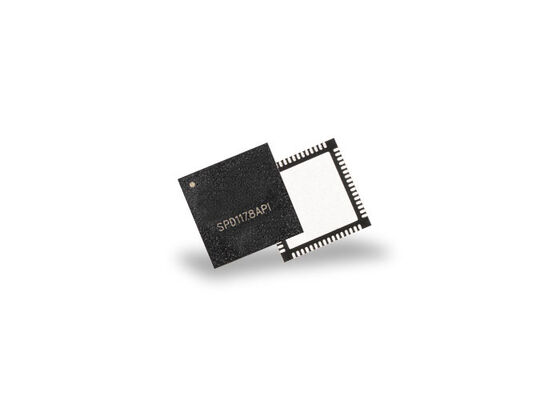

Large Image : SPD1178API Microcontroller MCU System-On-Chip Controller with 200MHz CPU Clock in QFN64 Package and 8~60V Pre-driver

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SPD1178API

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN64
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

SPD1178API Microcontroller MCU System-On-Chip Controller with 200MHz CPU Clock in QFN64 Package and 8~60V Pre-driver

Description

Part Number:	SPD1178API	CPU Core:	M4
Package:	QFN64	Pre-driver:	8~60V
Operating Junction Temperature:	-40 ~ 125	CPU Clock Frequency:	200MHz
Highlight:	200MHz Microcontroller MCU , QFN64 Package System-On-Chip Controller , 8~60V Pre-driver SPD1178API

SPD1178API Microcontroller MCU Advanced System-On-Chip Controller In QFN64 Package

Product Overview

The SPD1178API is an advanced system-on-chip controller that integrates two pre-driver circuits. It features a high-performance 32-bit ARM Cortex-M4 core with software-programmable clock frequency up to 200MHz, 64KB SRAM, 128KB embedded FLASH, and comprehensive I/O and peripheral resources. This microcontroller includes a 14-bit ADC, three programmable gain operational amplifiers, six enhanced PWM modules, three general-purpose 32-bit timers, and communication interfaces including UART, I²C, and SPI, making it an ideal solution for motor control applications. The MCU operates at 2.97 to 3.63V, while the pre-driver functions within an 8V to 60V operating range.

Technical Specifications

Specification	Value
CPU Core	ARM Cortex-M4
Maximum CPU Clock Frequency	200 MHz
Maximum Flash Capacity	128 KB
Maximum SRAM Capacity	64 KB
ADC Accuracy	14 bits
ADC Pin Channels	16 channels
ADC Sample-and-Hold Channels	3 channels
Programmable Gain Operational Amplifiers	3 channels
Comparators	5 pairs
PWM Channels (Internally Directed)	12 channels
I²C Lines	1
SPI Channels	1
UART Channels	1
Programmable IO Modules	1
Pre-driver	60V / 1A+ 1.3A * 2
Power Supply (MCU)	3.3V
Power Supply (Pre-driver)	8-60V
Package	QFN64
Operating Junction Temperature	-40°C to 125°C
